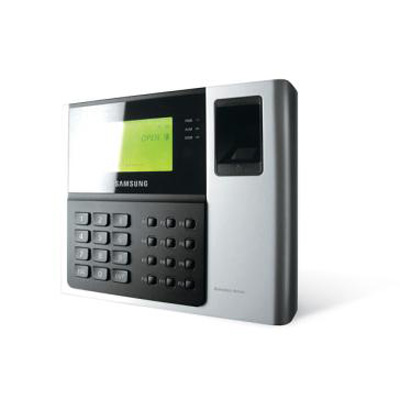

Hanwha Techwin America SSA-S3011 standalone 100 fingerprint proximity / smart cards and pin access controller

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SSA-S3011
  • Controller Type: Networkable
  • Networkable: Yes
Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SSA-S3011
Controller Type Networkable
Networkable Yes
Communication Type RS232 / RS485
Onboard No/Type of Inputs / Outputs 4 Input, 4 Output
Universal / Wiegand Reader Interface Yes
Electrical Specifications Voltage: 12 V DC
Physical Specifications Dimensions mm: 191.5 x 159.5 x 44
Weight g: 760
Environmental Specifications Operating Temp oC: 0 ~ 50
Operating Humidity %: 10 ~ 90
