Hanwha Techwin America SSA-P112 50,000-user single door access control controller

Technical Specification

Features:
  • Make: Hanwha Techwin America
  • Previously known as: Samsung
  • Model code: SSA-P112
  • Controller Type: Standalone/Networkable
  • Max No. of Doors per Controller: 1
Read more
Additional info:

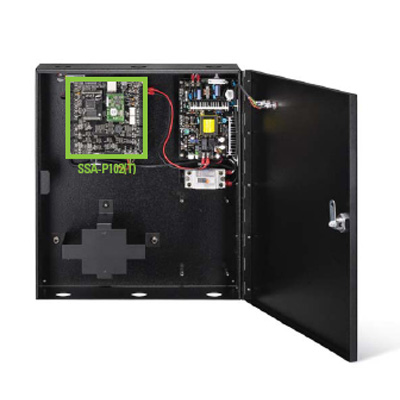

Intelligent Single Door Access Control Panel with Power Package

Read more
Make Hanwha Techwin America
Manufacturer Hanwha Techwin America
Previously known as Samsung
Model code SSA-P112
Controller Type Standalone/Networkable
Max No. of Doors per Controller 1
No of Cardholders 50,000
Networkable Yes
Communication Type RS232 / RS422 / RS485
Onboard No/Type of Inputs / Outputs 5 in, 4 out
Universal / Wiegand Reader Interface Yes
Electrical Specifications Voltage: 90 ~ 250 V AC
Power Consumption: 40.5 W
Physical Specifications Dimensions mm: 350 x 399 x 100
Environmental Specifications Operating Temp oC: 0 ~ 50
Operating Humidity %: 10 ~ 90
Additional info
Intelligent Single Door Access Control Panel with Power Package
