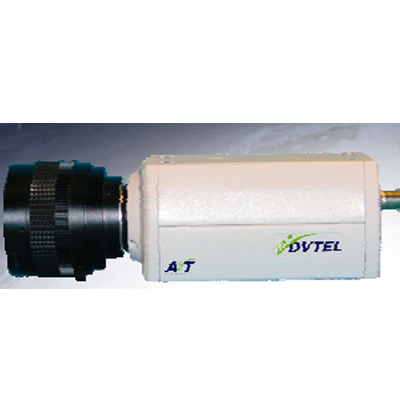

FLIR Systems DVT - 9540SW IP camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: FLIR Systems
Previously known as: DVTEL
Model code: DVT - 9540SW
Chip Inch Size: 1/3 inch
Colour Type: Colour

Additional info:

The Altitude 9540 IP camera utilizes IGMP Snooping (Layer-2 multicasting) technology, which enables a single stream to be transmitted to multiple viewers on the network simultaneously. Multicasting reduces bandwidth demands, allowing cameras to be transmitted over the network than unicast based products including unicast IP cameras and DVRs.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	FLIR Systems
Manufacturer	FLIR Systems
Previously known as	DVTEL
Category	CCTV>IP cameras
Model code	DVT - 9540SW
Chip Inch Size	1/3 inch
Colour Type	Colour
Resolution	704 x 576 resolution
Digital (DSP)	Yes
Sensitivity Lux	0.8
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 8 W
Lens Mount	C/CS mount
Focal Length mm	2.6 ~ 6
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 25 / 30 fps Interface: 10/100 Base-T Network Protocols: RTP/IP,UDP/IP,TCP/IP,DNS,DHCP
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	42
Signal Mode	PAL/NTSC
Compression Type	MPEG-4
Additional info	The Altitude 9540 IP camera utilizes IGMP Snooping (Layer-2 multicasting) technology, which enables a single stream to be transmitted to multiple viewers on the network simultaneously. Multicasting reduces bandwidth demands, allowing cameras to be transmitted over the network than unicast based products including unicast IP cameras and DVRs.
