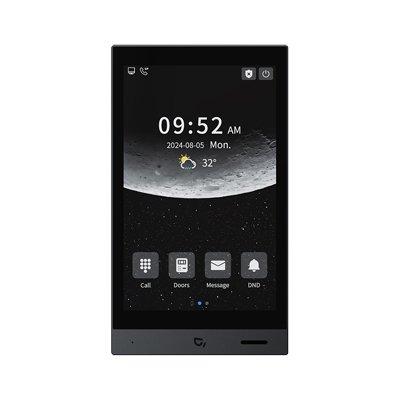

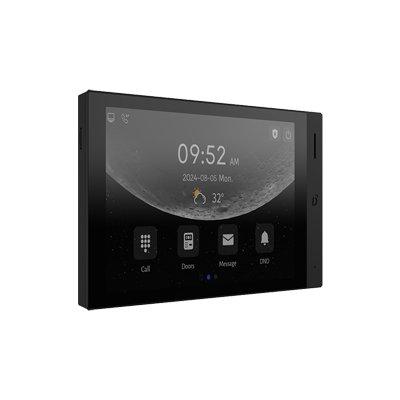

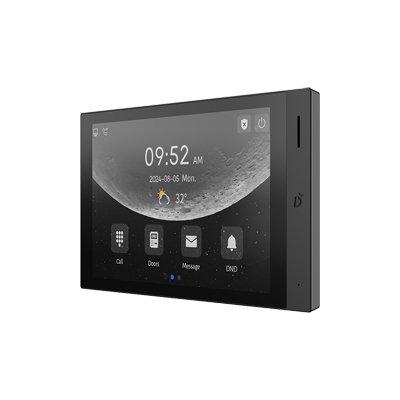

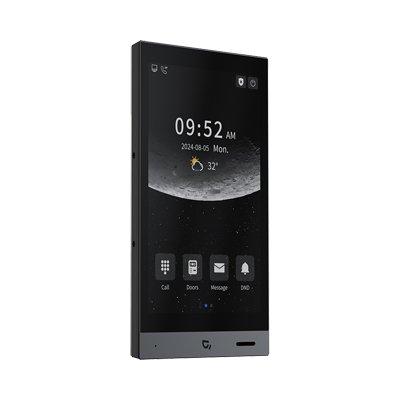

DNAKE H616 SIP-based indoor monitor

Technical Specification

Features:

Make: DNAKE
Model code: H616
Type of Kit/ System: Video & Audio
Mount Type: Surface Mount
Panel Material: Aluminum (Front Panel)

Additional info:

With an Android 10 operating system, DNAKE SIP-based indoor monitor provides high-definition audio and video communication with Door Station and room-to-room communication via SIP 2.0 protocol. It also allows integration with 3rd party software, and elevator control system, offering an integrated security solution.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Access Control>Audio, video or keypad entry
Model code	H616
Type of Kit/ System	Video & Audio
Mount Type	Surface Mount
Panel Material	Aluminum (Front Panel)
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 10 W
Physical Specifications	Dimensions mm: 217 x 124 x 14
Additional info	With an Android 10 operating system, DNAKE SIP-based indoor monitor provides high-definition audio and video communication with Door Station and room-to-room communication via SIP 2.0 protocol. It also allows integration with 3rd party software, and elevator control system, offering an integrated security solution.
