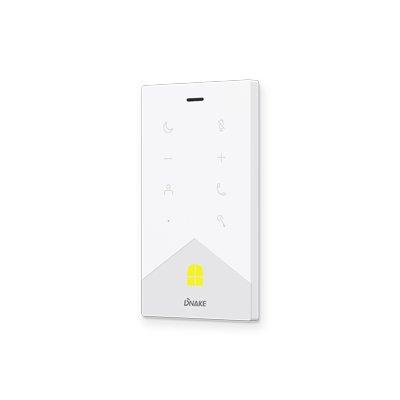

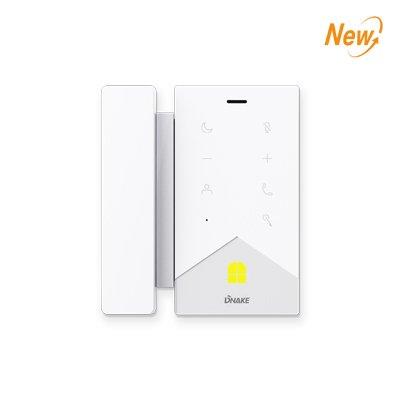

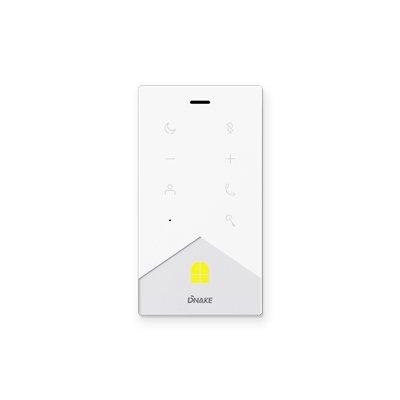

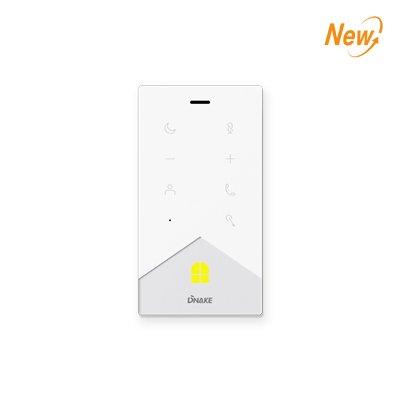

DNAKE E211 Audio Indoor Monitor

Technical Specification

Features:

Make: DNAKE
Model code: E211
Type of Kit/ System: Keypad & Audio
Mount Type: Surface Mount
Panel Material: Plastic

Additional info:

Stylish design with user-friendly LED indicator Fade-resistant keys High quality audio communication 8-ch alarm input, 1 x RS485 Optional handset Optional Wi-Fi Powered by PoE or power adapter (DC12V/2A) Quick installation and remote management via web interface

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	DNAKE
Manufacturer	DNAKE
Category	Access Control>Audio, video or keypad entry
Model code	E211
Type of Kit/ System	Keypad & Audio
Mount Type	Surface Mount
Panel Material	Plastic
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 6 W
Physical Specifications	Dimensions mm: 184 x 158.4 x 37.4
Additional info	Stylish design with user-friendly LED indicator Fade-resistant keys High quality audio communication 8-ch alarm input, 1 x RS485 Optional handset Optional Wi-Fi Powered by PoE or power adapter (DC12V/2A) Quick installation and remote management via web interface
