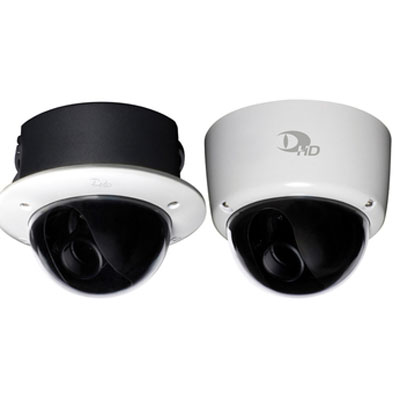

Dallmeier DDF4520HDV-DN 1.3 MP colour/monochrome hybrid HD dome camera

Technical Specification

Features:
  • Make: Dallmeier
  • Model code: DDF4520HDV-DN
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 1.3MP
Read more
Additional info:

Dallmeier DDF4520HDV-DN is a 1.3 MP colour/monochrome hybrid HD dome camera that features Wide Dynamic Range (WDR) and allows to capture images with highest colour fidelity and superb detail reproduction even in scenes with a wide range of contrast and strong backlighting. The excellent low light performance also provides for clear and low noise images even in low light conditions.Besides a comprehensive set of automatic and manual image optimization functions and many other setting options, it features automatic Day/Night operation supported by integrated ambient light sensing and a removable IR cut filter.

Read more
Make Dallmeier
Manufacturer Dallmeier electronic GmbH & Co.KG
Model code DDF4520HDV-DN
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 1.3MP
HD Yes
Megapixel Yes
Sensitivity lux 0.1
Dome Type Static
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC/PoE
Power Consumption: 4.5 W
Compression H.264
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/25(30) ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB 43.9
Signal Mode PAL / NTSC
Built-in IR LED Yes
Video Output 1.0 V p-p , 75 Ohm, BNC
Network Properties Interface: 10BASE-T-/100BASE-TX-PoE, RJ45
Network Protocols: IPv4, TCP, UDP, ARP, ICMP, DHCP, NTP, HTTP, RTSP, IGMP V2, FTP, SMTP, RTP, RTCP
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 170 × 135
Weight g: 1,200
Environmental Specifications Operating Temp oC: -20 ~ +40 C (-4 ~ +104 F)
Operating Humidity %: 0 ~ 90
Protection: IK10
Additional info Dallmeier DDF4520HDV-DN is a 1.3 MP colour/monochrome hybrid HD dome camera that features Wide Dynamic Range (WDR) and allows to capture images with highest colour fidelity and superb detail reproduction even in scenes with a wide range of contrast and strong backlighting. The excellent low light performance also provides for clear and low noise images even in low light conditions.Besides a comprehensive set of automatic and manual image optimization functions and many other setting options, it features automatic Day/Night operation supported by integrated ambient light sensing and a removable IR cut filter.
Download PDF version
