Dallmeier presents new HD Megapixel IP dome: DDF4500HDV

Product Profile

The ideal entry into the world of HD!

The DDF4500HDV is a 2 megapixel high-definition IP dome camera. It is equipped with the proven Cam_inPIX® camera technology and therefore provides clear, high-contrast and colour-true pictures.

This Dallmeier network dome camera has a 1/2.5" 5 megapixel CMOS image sensor and supports both standard and high definition (720p, 2 MP) resolutions. Enhanced image quality can be achieved by means of numerous control functions such as AWB, AGC and slow shutter. Power supply can be via PoE or 12V DC.

Features of the Dallmeier DDF4500HDV:

  • 1/ 2.5" 5 megapixel CMOS image sensor with Cam_inPIX® technology
  • Pure Digital Signal Processing
  • High sensitivity at F1.0, 50IRE: 1.6 lux
  • Electronic Day/Night switching
  • Resolution: SD, HD (720p, 2MP)
  • Frame rate up to 30 fps
  • Video compression: H.264, MJPEG
  • Simultaneous dual- or tri-streaming
  • Megapixel vari-focal lens: F1.8/ f=4-10mm, Day
  • Noise suppression
  • Hybrid IP camera with an analogue preview output
  • Alarm notification via FTP image upload
  • Local video memory SDHC card slot integrated
  • Tri-axial adjustment

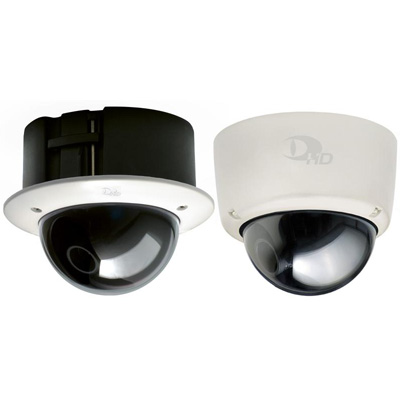

  • Two available camera variants: in-ceiling mount and surface mount
  • Compact, vandal-resistant housing with IP67 (surface mount variant)
  • DIN EN 50130-4 compliant

Besides the dome camera, Dallmeier also offers a 2 megapixel high-definition box camera, the DF4500HD.

Read more

Technical Specification

Make Dallmeier
Manufacturer Dallmeier electronic GmbH & Co.KG
Model code DDF4500HDV
Chip Inch Size 1/3
Colour Type Colour / Monochrome
HD Yes
Sensitivity lux 1.6 Lux @ F1.0
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 4 W
Focal length 4 ~ 10
Compression H.264, M-JPEG
Back Light Compensation Yes
Auto Gain Control Yes
Electronic Shutter range 1/30 ~ 1/1000s
S/ N (Signal/ Noise) Ratio dB > 45
Signal Mode PAL/NTSC
Network Properties Interface: 1x RJ45, 10BASE-T-/100BASE-TX-PoE
Network Protocols: DHCP, HTTP, UDP, UPnP, FTP, SMTP, RTP
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: 170 x 129
Weight g: 1200
Environmental Specifications Operating Temp oC: -10 ~ +40
Operating Humidity %: 0 ~ 90
Protection: IP67
Additional info Dallmeier presents new HD Megapixel IP dome: DDF4500HDV
