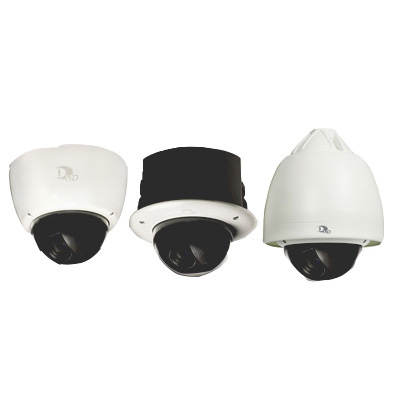

Dallmeier DDF4110HDV-IM vandal-resistant in-ceiling mounted network dome camera

Technical Specification

Features:
  • Make: Dallmeier
  • Model code: DDF4110HDV-IM
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 1280 x 720
Read more
Additional info:

Dallmeier DDF4110HDV-IM vandal-resistant in-ceiling mounted network dome camera

Read more
Make Dallmeier
Manufacturer Dallmeier electronic GmbH & Co.KG
Model code DDF4110HDV-IM
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 1280 x 720
HD Yes
Sensitivity lux 0.2 @ F1.8
Digital (DSP) Yes
Mount Type In-ceiling
Electrical Specifications Voltage: 24 VAC, PoE
Power Consumption: 15.2 W
Focal length 5.1 ~ 51
Presets 6
Compression M-JPEG, H.264
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/2 ~ 10,000
S/ N (Signal/ Noise) Ratio dB 50
Zoom Ratio 10x optical, 12 x digital
Network Properties Interface: 1x RJ45, 10/100 Mbps
Network Protocols: IPv4, TCP, HTTP, IGMP, DHCP, ARP, NTP, UDP, RTP*
Image Frame Rate: 50 fps
Physical Specifications Dimensions mm: 193 x 164.4
Weight g: 2,000
Environmental Specifications Operating Temp oC: 0 ~ 35
Operating Humidity %: 0 ~ 90
Additional info Dallmeier DDF4110HDV-IM vandal-resistant in-ceiling mounted network dome camera
