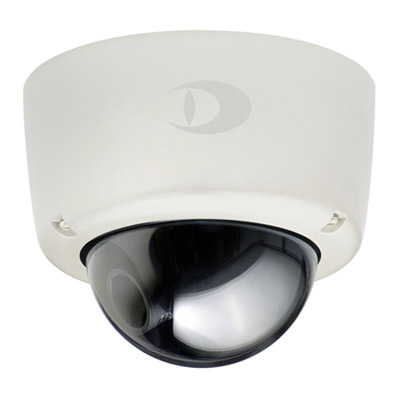

Dallmeier IP cameras with Cam_inPIX® technology

Product Profile

Dallmeier is also offering day/night Cam_inNET® network cameras besides the analogue high-resolution ultra wide dynamic range colour cameras.

The DF3000IP(-DN) and the vandal-resistant colour dome camera DDF3000IPV(-DN) are the world's first high-resolution IP colour video cameras with Cam_inPIX® technology.  The innovative sensor concept of the Cam_inPIX® technology, based on the most up-to-date Digital Pixel System (DPS) platform, where the picture information of each individual pixel is converted digitally at the point of capture and processed in the most optimal way.  Therefore, even situations with a great range in contrast can be recorded and documented in picture qualities previously unseen.

The ultra high dynamic range of the cameras, their high-resolution sensor technology and the software developed especially for the security field provide clear, colour-true and detailed pictures at all times, without any blooming or smearing.

Even in darkness, the Dallmeier Cam_inNET® cameras provide good results thanks to the day/night function (pivoting infra-red cut filter) and the option of switching to black-and-white mode.

Features DDF3000IPV(-DN):

  • 1/3" DPS sensor with Cam_inPIX® technology
  • Digital Pixel System® chipset
  • Pure 17-bit Digital Signal Processing
  • High sensitivity for low-light images at F1.2, 50IRE: 0.8 lux and (-DN) 0.3 lux
  • Progressive Scan image capture and data transmission
  • Enhanced image quality by means of numerous control functions like AWB, AGC, BLC and extended slow shutter
  • Hi-res varifocal lens with F1.2 and f=2.9-10mm, IR corrected
  • Hybrid IP camera with analogue and Ethernet outputs
  • Video compression with selectively MPEG-2/-4, MJPEG
  • Maximal resolution up to Full D1
  • Selectable frame rate up to 25 fps at Full D1
  • Motion detection
  • Tri-axial gimbal adjustment
  • Compact vandal resistant housing with IP67
Read more

Technical Specification

Make Dallmeier
Manufacturer Dallmeier electronic GmbH & Co.KG
Model code DDF3000IPV-DN
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 540 @ F0.95
Sensitivity lux 0.04
Dome Type Variable Focus
Digital (DSP) Yes
Indoor/Outdoor Indoor
Mount Type In-ceiling
Electrical Specifications Voltage: 12 V DC / 24 V AC
Power Consumption: 5 W
Focal length 2.9 ~ 8
Compression MPEG-2/-4, MJPEG, H.263
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range Up to 8x
S/ N (Signal/ Noise) Ratio dB >48
Synchronisation Internal
Signal Mode PAL/NTSC
Video Output 75 Ohm
Zoom Ratio x16
Network Properties Interface: 1x10/100 Base T RJ45; 1x RS485
Image Frame Rate: 25 fps (PAL) / 30 fps (NTSC)
Inclusive DVR/ Web Server: Web Server
Physical Specifications Dimensions mm: 140 (Dia) x 113
Weight g: 1,200
Environmental Specifications Operating Temp oC: 0 ~ 50
Protection: IP67
System Requirments Hardware and System related properties: Dual MIPS risk processor, 64 MB DRAM
Additional info

If the cameras are not controlled directly from a Dallmeier digital recorder or a PView Station in CCTV systems, the control and configuration can be carried out by means of a UTC box inserted at any point between the camera and the recorder.
