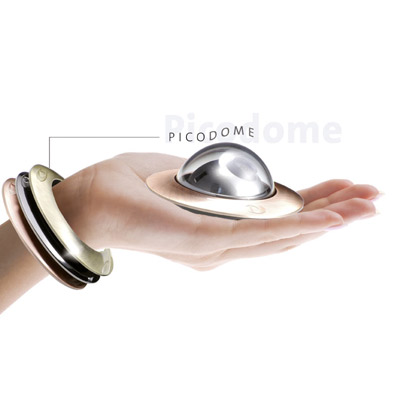

Dallmeier's award-winning Picodome® with revolutionary Cam_inPIX® technology

Product Profile

New Cam_inPIX® website is now online

Discover the latest technology and most recent developments of CCTV/IP camera technology.  Learn more about the technology behind Cam_inPIX® and benefit from the knowledge of international CCTV experts.

The new Cam_inPIX® website is now online: www.caminpix.com.

Watch a short demo of a Dallmeier IP camera with Cam_inPIX technology filming the Everglades, Florida
Picodome® special
promotion

Meet Dallmeier's smallest camera for the unbeatable price of 99 € (excl. VAT).

The award-winning Picodome® is based on the revolutionary Cam_inPIX® technology, which is seen as the trendsetting and groundbreaking technology for the development of CCTV/IP cameras.  See for yourself the outstanding qualities that characterise this small Powercam whose resolution capabilities, non-glaring and colour fidelity make it unbeatable.

The Picodome® special promotion and the special price are limited to 99 days!

Waste no time and order online now!*

* Since this is a special promotion only one exemplar can be ordered per customer.  If you would like to order larger quantities, please contact Dallmeier or one of the numerous Dallmeier sales partners.

Read more

Technical Specification

Make Dallmeier
Manufacturer Dallmeier electronic GmbH & Co.KG
Model code DDF3000APV
Chip Inch Size 1/3
Colour Type Colour
Resolution TVL 540
Dome Type Fixed Focus
Sensitivity lux 0.2
Digital (DSP) Yes
Indoor/Outdoor Indoor/Outdoor
Mount Type In-ceiling
Electrical Specifications Voltage: 12 VDC
Power Consumption: 1.7 W
Focal length 3.6
Presets 7
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB > 48
Synchronisation Internal
Signal Mode PAL / NTSC
Video Output BNC
Network Properties Image Frame Rate: 50 fps PAL / 60 fps NTSC
Physical Specifications Dimensions mm: 57 (Dia) x 60
Weight g: 250
Environmental Specifications Operating Temp oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
Protection: IP66
Additional info

With Cam_inPIX® technology.  Progressive Scan image capture.  IR cut lens coating.  Advanced noise reduction.  Compact vandal-resistant housing.  Different housing colours.

Download PDF version
