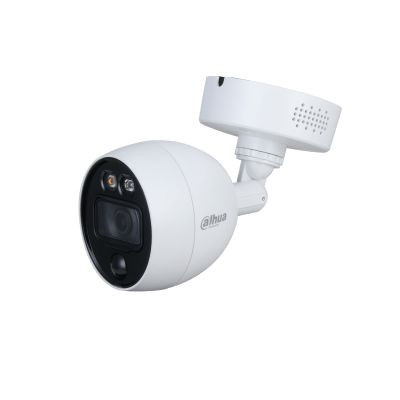

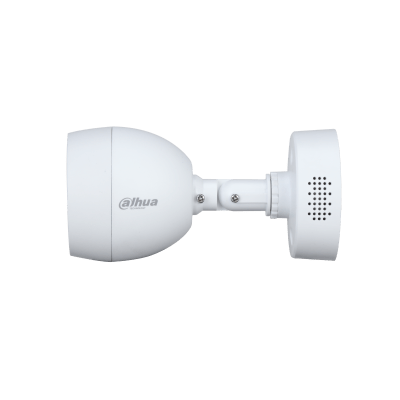

Dahua HDCVI Active Deterrence Camera

Product Profile

System Overview
This PIR model is an indoor/outdoor dual detection camera which uses both video and infrared sensor to achieve accurate motion detection functionality. It also supports active deterrence feature which warns off intruders with siren even before users are aware of the incident. This camera is an ideal choice for applications which require intrusion protect and video verification, such as courtyards, offices, warehouses, stores.

Functions

4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, such as video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m transmission for 5MP HD video overcoaxial cable, and up to 300 m over UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analogue surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analogue system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Active Deterrence
Active deterrence is to warn off intruders actively with siren even before users are aware of the incidence. Once an intrusion is detected, the siren will buzzer to alert the intruder. The content of siren is configurable.

Full-colour
The camera adopts F1.2 large aperture lens and 1/2.7" high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera can be able to present 24/7 coloured image that provides colour details to accurately identify people or objects in low light conditons.

Warm Supplemental lights
With two warm supplemental LED lights, the camera is able to provide a colorful and vivid image even in total darkness. It also provides visible by default, the camera is set to smart light mode, in which the camera can automatically adjust the exposure time and light sensitivity simultaneously to avoid overexposure of the objects in the image center. Also, the sensitivity and intensity of the LED lights can be remotely controlled by OSD menu.

Protection
The camera's outstanding reliability is unsurpassed due to its rugged design.The camera is protected against water and dust with IP67, making it suitable for indoor or outdoor environments.

With PIR working temperature range of –10 °C to +50 °C (–14 °F to +122 °F), the MotionEye is designed for extreme temperature environments. Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Read more

Technical Specification

Make Dahua Technology
Manufacturer Dahua Technology Ltd
Model code DH-HAC-ME1509B-LS
Series Active Deterrence Series
Chip Inch Size " 1/3 inch
Colour Type Colour
Resolution TVL 5 MP TVL resolution
Sensitivity lux 0 ~ 0.005 lux
Electrical Specifications Voltage: 12 V DC
Power Consumption: 7W
Motion Activated Yes
Focal Length mm 2.8 mm; 3.6 mm
Wide Dynamic Range Yes
Picture Elements HxV 2592 x 1944
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
S/ N (Signal/ Noise) Ratio dB >65
Signal Mode PAL, NTSC
Video Output 1 BNC output. Support CVI/TVI/AHD/CVBS
Physical Specifications Dimension mm: 164 x 83 x 72
Weight g: 270
Environmental Specifications Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
Protection: IP67
Operating Humidity %: < 95
Additional info
  • 24/7 colour imaging
  • Active deterrence with siren
  • Built-in PIR, 10 m/110° detecting range/angle
  • Max. 20 fps@5MP
  • 2.8 mm fixed lens (3.6 mm optional)
  • 40 m illumination distance
