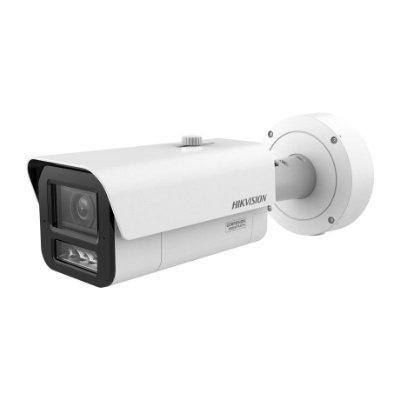

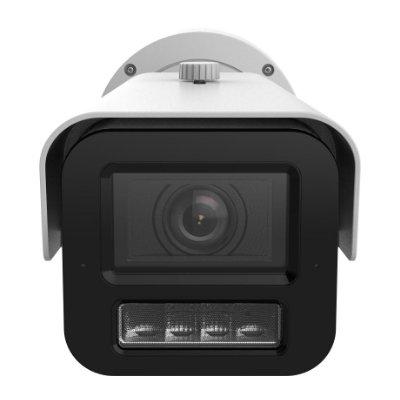

Hikvision IDS-2CD7A46G2/V-XZHS(Y) IP camera Specifications

Hikvision DeepinViewX AI Cameras for Perimeter Protection

Product Profile

Challenges to video-based perimeter protection

False or missed alarms by environmental interferences
Hard to quickly improve alarm accuracy
Alarm accuracy varies in different scenarios

Hikvision’s technology evolution

To address these challenges, Hikvision has consistently made efforts in the research and development of technologies to enable more precise, efficient, and adaptable perimeter protection.

Optimal algorithm or model for perimeter protection was only achieved after the implementation of Hikvision’s large-scale AI models.

Why perimeter protection with a large-scale AI model？

More pre-training, higher accuracy
As the algorithm's complexity and capacity increase through advanced pre-training, its accuracy also improves dramatically.
Optimal performance upon deployment
Experience high-accuracy alarms the moment you set the system up. There is no need to enhance the alarm accuracy as the algorithm performs optimally by default.
The one-size-fits-many solution
Enjoy effortless scenario adaptation brought by the large-scale AI model. The algorithm is ready for deployment in scenarios with varied conditions.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision
Category	CCTV>IP cameras
Model code	IDS-2CD7A46G2/V-XZHS(Y)
Chip Inch Size	1/1.8 inch
Colour Type	Colour / Monochrome
Resolution	4MP resolution
Sensitivity Lux	Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR,0 Lux with light
Electrical Specifications	Voltage: 12 V DC, 24 V AC, PoE
Focal Length mm	2.8 ~ 12
Mount Type	Pole, Corner
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1 s to 1/100,000 s
S/ N (Signal/ Noise) Ratio dB	≥ 52 dB
Y/ C (Video Output)	1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Compression Type	H.265+/H.265/H.264+/H.264/MJPEG
Network Properties	Interface: RJ45 10 M/100 M/1000 M self-adaptive Ethernet Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Physical Specifications	Dimensions mm: Ø140 x 377.4 Weight g: 2280
Environmental Specifications	Protection: IP67, IK10 Operating Temperature ^oC: -40 ~ +65 C (-40 ~ +149 F) Operating Humidity %: ≤ 95
System Requirements	Web Browser: Plug-in required live view: IE 10, IE 11 / Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ / Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Additional info	High quality imaging with 4 MP resolution Excellent low-light performance via DarkFighter technology Clear imaging against strong back light due to 140 dB WDR technology Efficient H.265+ compression technology to save bandwidth and storage 5 streams to meet a wide variety of applications Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional) Built-in heater to ensure clear image under rainy or snowy weather Dedicated large scale AI model for perimeter protection, reduce false alarms by 98%
Download PDF version Download PDF version

Make

Hikvision

Manufacturer

Hikvision

Category

CCTV>IP cameras

Model code

IDS-2CD7A46G2/V-XZHS(Y)

Chip Inch Size

1/1.8 inch

Colour Type

Colour / Monochrome

Resolution

4MP resolution

Sensitivity Lux

Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR,0 Lux with light

Electrical Specifications

Voltage: 12 V DC, 24 V AC, PoE

Focal Length mm

2.8 ~ 12

Mount Type

Pole, Corner

Wide Dynamic Range

Yes

Back Light Compensation

Yes

Auto Gain Control

Yes

White Balance

Yes

Electronic Shutter Range

1 s to 1/100,000 s

S/ N (Signal/ Noise) Ratio dB

≥ 52 dB

Y/ C (Video Output)

1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Compression Type

H.265+/H.265/H.264+/H.264/MJPEG

Network Properties

Interface: RJ45 10 M/100 M/1000 M self-adaptive Ethernet
Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets

Physical Specifications

Dimensions mm: Ø140 x 377.4
Weight g: 2280

Environmental Specifications

Protection: IP67, IK10
Operating Temperature ^oC: -40 ~ +65 C (-40 ~ +149 F)
Operating Humidity %: ≤ 95

System Requirements

Web Browser: Plug-in required live view: IE 10, IE 11 / Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ / Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Additional info

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
Built-in heater to ensure clear image under rainy or snowy weather
Dedicated large scale AI model for perimeter protection, reduce false alarms by 98%

Download PDF version Download PDF version
