A complete wired security system offered by Climax

Product Profile

The Climax wired security system is a comprehensive wired product line that provides sound protection suitable for a broad range of commercial application, offering another option besides Climax’s wireless security solution.

The newly introduced VST-892-BUS is a hardwired PIR motion sensor camera capable of sending captured images to the Hybrid Panel upon movement detection. In addition, VST-892EX-BUS is suitable for outdoor application. Climax also launches TSP-BUS, a hardwired Touchscreen keypad that provides access to arm/disarm/home arm the system and intuitive operation of the security system.

Other products from the wired security system include Keypads, Motion Sensor Cameras, Motion Detectors, Sirens, Bell Box, Door/Window Contact and Expansion Modules. Through BUS connection, the wired devices allow connection of several devices at once for enhanced flexibility and redundancy.

To explore other wired products from Climax, click here.

Read more

Technical Specification

Make Climax Technology
Manufacturer Climax Technology Co., Ltd.
Category Intruder Alarms>Intruder alarm system control panels & accessories

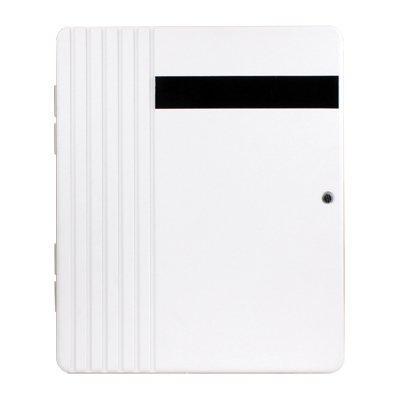

Model code Hybrid Panel
Additional info
  • A wired and wireless IP-based smart home security gateway with LTE capability
  • Wired & wireless zones: 80 per areas, 640 in total
  • 8 Areas and 16 on-board zones available
  • Number of BUS connected devices: 128 (Maximum of 4 KPT-35(N)-BUS models)
  • Smart Automation that incorporates ZigBee/Z-Wave devices
  • World-leading 2-Km RF Range that delivers RF communication range of 2km
  • 24-Hour Emergency Monitoring by incorporating emergency security devices
  • Scalable System that integrates wired zone expansion modules and devices
  • Visual Verification and Real-time Visual Monitoring by incorporating cameras
  • Remote and Mobile Control via Vesta Home 5 web portal/App
  • Power: 100-240VA, 50/60 Hz
  • Total current consumption of wired zones, keypad and auxiliary output: 13.5V (Typical)
