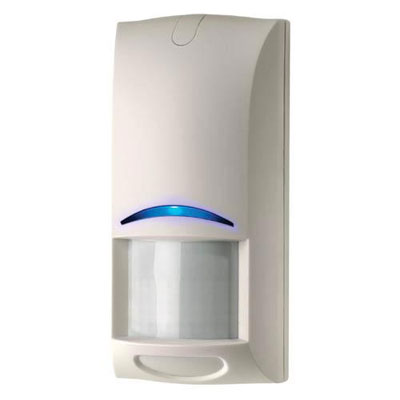

Bosch ISM-BLD1 Intruder detector

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Bosch
Model code: ISM-BLD1
Series: TriTech Series
PIR Detectors: Yes
Dual/ Quad Technology: Dual Technology Detectors

Additional info:

The ISM-BLBLD1 TriTech® Detectors use a combination of passive infrared (PIR) and microwave detection technologies with advanced signal processing. These small unobtrusive detectors are simple to install and donot need field adjustments.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Bosch
Manufacturer	Bosch Security Systems
Category	Intruder Alarms>Intruder detectors
Model code	ISM-BLD1
PIR Detectors	Yes
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	11 x 11
Microwave	Yes
Power Consumption	22 mA
Temperature Compensation	Yes
Mount Type	Surface
Wall/Ceiling Mount	Wall/Ceiling Mount
Electrical Specifications	Power Supply: 10 ~ 14 V DC
Physical Specifications	Dimensions mm: 132 x 61 x 48
Environmental Specifications	Operating Temp ^oC: -29 ~ +49
Additional info	The ISM-BLBLD1 TriTech® Detectors use a combination of passive infrared (PIR) and microwave detection technologies with advanced signal processing. These small unobtrusive detectors are simple to install and donot need field adjustments.
