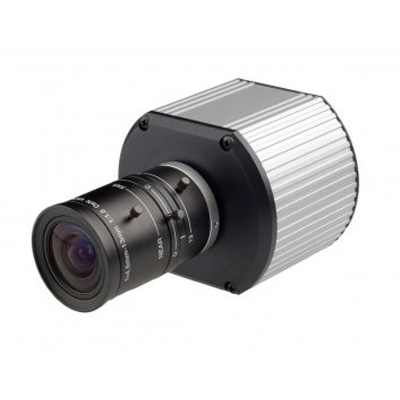

Arecont Vision AV3100DN 3 megapixel JPEG IP megavideo camera

Technical Specification

Features:
  • Make: Arecont Vision
  • Model code: AV3100DN
  • Chip Inch Size: 1/2
  • Colour Type: Colour / Monochrome
  • Specialist Type: PTZ
Read more
Make Arecont Vision
Manufacturer Arecont Vision
Model code AV3100DN
Chip Inch Size 1/2
Colour Type Colour / Monochrome
Specialist Type PTZ
Sensitivity Lux 0.0
Electrical Specifications Voltage: 15 ~ 48 V DC
Power Consumption: 3 W
Lens Mount C/CS
Picture Elements HxV 1280 x 1024
Network Properties Image Frame Rate: 32 fps
Interface: 100Base-T Ethernet
Network Protocols: TFTP, HTTP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 50
Zoom Yes
Compression Type M-JPEG
Physical Specifications Weight g: 243
Dimensions mm: 76 x 63.5 x 57
Environmental Specifications Operating Temperature oC: 0 ~ 50
Operating Humidity %: 0 ~ 90
