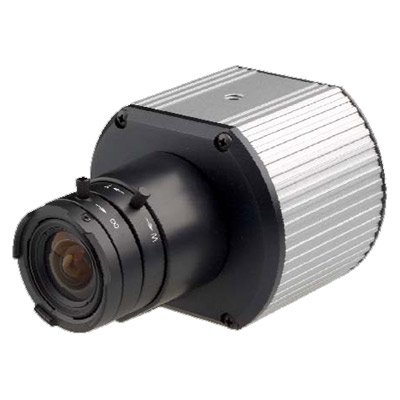

Arecont Vision's AV2100M 2 megapixel IP-camera with 0.1 Lux@F1.4

Technical Specification

Features:
  • Make: Arecont Vision
  • Model code: AV2100M
  • Chip Inch Size: 1/2
  • Colour Type: Colour
  • Resolution: 1600 x 1200
Read more
Additional info:

2 megapixel 1/2" colour CMOS image sensor.  Dynamic range: 60 dB.  Data transmission rate up to 55 Mbps.  50/60 Hz selectable flicker control.  Electrical POE (IEEE 802.3af standard) or DC input.  Forensic zooming; onboard motion detection.

Read more
Make Arecont Vision
Manufacturer Arecont Vision
Model code AV2100M
Chip Inch Size 1/2
Colour Type Colour
Resolution 1600 x 1200
Specialist Type PTZ
Sensitivity Lux 0.1
Electrical Specifications Voltage: 15 ~ 48 V DC
Power Consumption: 3 W
Lens Mount C/CS
Picture Elements HxV 1280 x 1024
Network Properties Image Frame Rate: 24 ~ 30 fps
Interface: 100Base-T Ethernet
Network Protocols: TFTP, HTTP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB 41
Zoom Yes
Compression Type M-JPEG
Physical Specifications Dimensions mm: 76.2 x 63.5 x 57.2
Weight g: 450
Environmental Specifications Operating Temperature oC: 0 ~ 50
Operating Humidity %: 0 ~ 90
Additional info

2 megapixel 1/2" colour CMOS image sensor.  Dynamic range: 60 dB.  Data transmission rate up to 55 Mbps.  50/60 Hz selectable flicker control.  Electrical POE (IEEE 802.3af standard) or DC input.  Forensic zooming; onboard motion detection.

Download PDF version
