Ajax Transmitter wireless module for third-party detector integration

Technical Specification

Features:
  • Make: Ajax
  • Model code: Transmitter
  • Power Supplies: Yes
  • Voltage: 3.3 V
  • Dimensions mm: 100 x 39 x 22
Additional info:

Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system. Principle of operation The device receives the activation signal from the detector via wired input and sends an alarm to the hub. Features It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened. Installation and set up It is installed in the enclosure of outdoor detectors or a mounting box.

Read more
Make Ajax
Manufacturer Ajax Systems
Model code Transmitter
Power Supplies Yes
Electrical Specifications Voltage: 3.3 V
Physical Specifications Dimensions mm: 100 x 39 x 22
Environmental Specifications OperatingTemp oC: -25 ~ +50 C (-13 ~ +122 F)
Additional info

Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system.

Principle of operation

The device receives the activation signal from the detector via wired input and sends an alarm to the hub.

Features

It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.

Installation and set up

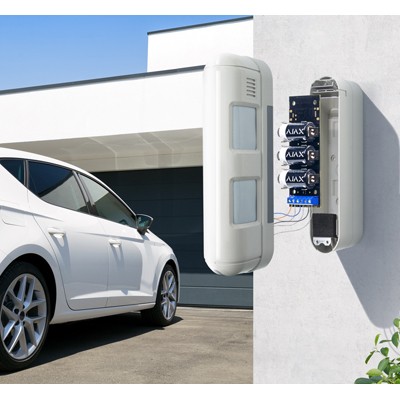

It is installed in the enclosure of outdoor detectors or a mounting box.
