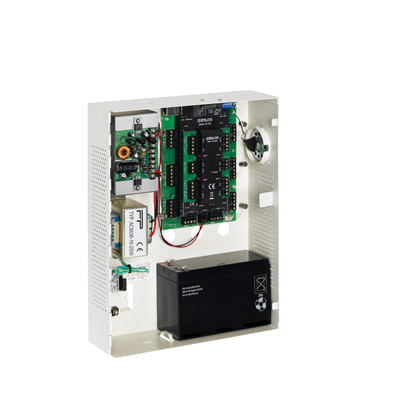

AC-225 - Advanced scalable networked access controller
AC-225 - Advanced scalable networked access controller

AC-225 is suitable for applications with up to 30,000 users across a modular 2,000 doors, allowing maximum flexibility for securing a growing enterprise.Each AC-225 Access Control Unit (ACU) supports two readers (In/Out) of various formats including standard Wiegand 26-bit.  Installations can also have one reader per door.The AC-225 is ready for installation with a mountable & lockable metal enclosure integrated with transformer, power supply/charger, sounder and control board.Using onboard RS-232, Ethernet TCP/IP, and PSTN, multiple local or remote site door sub-networks can connect to the AS-225 Client/Server PC software running on Microsoft® Windows® 98/ME & NT/2000/XP operating systems.Main featuresUp to 30,000 users with access rights for every panel, across 2,000 modular doors in a system20000, FIFO, history event log, when offlineFull intelligent logic interconnection of inputs, outputs, readers, and more4 inputs, 4 outputs, up to 12 inputs and 8 outputs with MD-IO84 IO expansionSupervised, 4 state end-of-line inputsOnboard TCP/IP networking (AC-225IP version)Panel supports both 1 door (In/Out) and 2 door (In/Out, In/In and Out/Out) configurationsReal-time clock keeps time for up to 2 weeks without power.  No batteries to replaceCable cut tamper detection function for readers and cover tamper detection for the enclosurePre-installed enclosure components:  Transformer, dual power supply/charger unit for panel and lock devicesSounder unitSpace for a 7AH SLA backup batteryTamper switch
