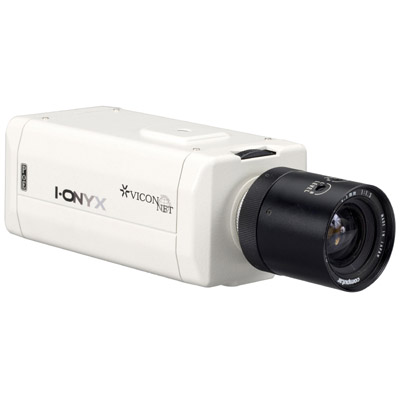

Vicon VN-856DNV5 is an IP Camera with digital noise reduction

Technical Specification

Features:
  • Make: Vicon
  • Model code: VN-856DNV5
  • Series: I-Onyx Series
  • Chip Inch Size: 1/3
  • Colour Type: Colour / Monochrome
Read more
Make Vicon
Manufacturer Vicon Industries
Model code VN-856DNV5
Series I-Onyx Series
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution 540
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0.3
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 24 V AC
Power Consumption: 5.6 W
Lens Mount C/CS
Picture Elements HxV PAL: 864 x 586; NTSC: 768 x 494
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range PAL: 1/50 ~ 1/100,000; NTSC: 1/60 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB >52
Synchronisation Internal
Signal Mode PAL, NTSC
Compression Type MPEG-4
Network Properties Interface: RJ-45, LAN: 100/10 Mbps, TCP/IP Unicast
Physical Specifications Dimensions mm: 60 x 74 x 135
Environmental Specifications Operating Temperature oC: -10 ~ +50
Operating Humidity %: 0 ~ 85
