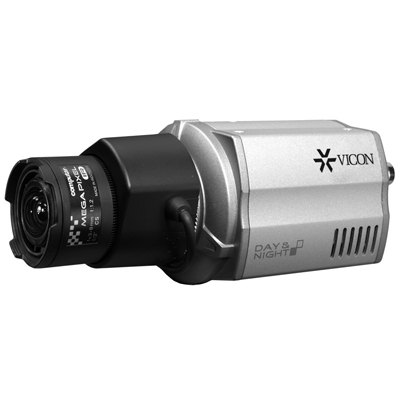

Vicon V960-N true day/night HD network camera

Product Profile

Vicon’s V960 line of fixed cameras deliver superior resolution, image quality and performance when used as part of any ONVIF-compliant video management system. These true day/night with a range of lens options are offered with resolutions of 1080p, 720p and D1 (2 MP, 1.3 MP and VGA).

The V960-N Series provides dual-streaming video and supports H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. Users can receive multiple streams simultaneously in different resolutions, frame rates and image qualities for viewing on different platforms.

Installation of the V960-N is made easy and cost effective with Power over Ethernet (IEEE 802.3af), which eliminates the need for power cables. The camera also accepts 12 VDC and 24 VAC. Additionally, a composite output is provided for installation using a spot monitor (NTSC/PAL selectable).

In order to adapt to constantly changing outdoor lighting conditions, the V960-N is a true day/night camera that includes a removable IR-cut filter for superior image quality around the clock. The camera offers a CS-mount, and a C-mount adapter is provided for use with a wide choice of lenses. A DC auto iris output is also provided.
Read more

Technical Specification

Make Vicon
Manufacturer Vicon Industries
Model code V962-N
Series V960-N Series
Colour Type Colour / Monochrome
Resolution 1920 x 1080
Digital (DSP) Yes
Sensitivity Lux 0.08
Auto Iris Yes
Direct Drive Yes
Lens Mount C/CS
Electrical Specifications Voltage: 12 V DC, 24 V AC, PoE
Power Consumption: 5.4 W
Motion Activated Yes
S/ N (Signal/ Noise) Ratio dB > 50
Signal Mode PAL, NTSC
Zoom Yes
Compression Type H.264, MJPEG
Network Properties Network Protocols: IPv4, IPv6, TCP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP
Physical Specifications Weight g: 230
Dimensions mm: 60 x 116 x 81
Environmental Specifications Operating Temperature oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
System Requirements Web Browser: Internet Explorer® 7.0 and above, Firefox®
Additional info

Chip size: 1/2.5

The V962-N is a true day/night camera that includes a removable IR-cut filter for superior image quality around the clock.
