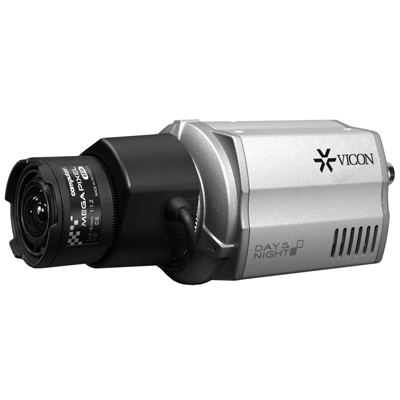

Vicon V960-N true day/night HD network camera

Technical Specification

Features:
  • Make: Vicon
  • Model code: V960-N
  • Series: V960-N Series
  • Colour Type: Colour / Monochrome
  • Resolution: 640 x 480
Read more
Additional info:

Chip size: 1/2.5 The V960-N is a true day/night camera that includes a removable IR-cut filter for superior image quality around the clock.

Read more
Make Vicon
Manufacturer Vicon Industries
Model code V960-N
Series V960-N Series
Colour Type Colour / Monochrome
Resolution 640 x 480
Digital (DSP) Yes
Sensitivity Lux 0.08
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, 24 V AC, PoE
Power Consumption: 4 W
Lens Mount C/CS
Motion Activated Yes
S/ N (Signal/ Noise) Ratio dB > 50
Signal Mode PAL, NTSC
Zoom Yes
Compression Type H.264, MJPEG
Network Properties Network Protocols: IPv4, IPv6, TCP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP
Physical Specifications Dimensions mm: 60 x 116 x 81
Weight g: 230
Environmental Specifications Operating Temperature oC: -10 ~ +50
Operating Humidity %: 0 ~ 90
System Requirements Web Browser: Internet Explorer® 7.0 and above, Firefox®
Additional info

Chip size: 1/2.5

The V960-N is a true day/night camera that includes a removable IR-cut filter for superior image quality around the clock.
