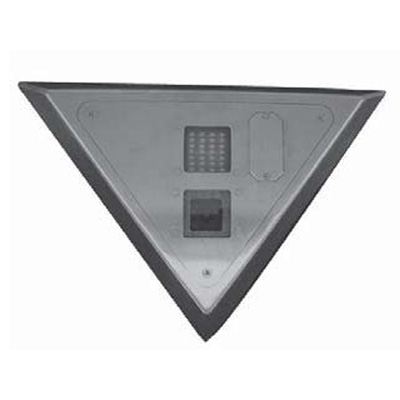

Vicon V15CCM-IR-2 IP camera designed for use in prison cells, integrated housing, camera and lens

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vicon V15CCM-IR-2 IP camera designed for use in prison cells, integrated housing, camera and lens

Features:

Make: Vicon
Model code: V15CCM-IR-2
Series: RoughNeck Series
Chip Inch Size: 1/3 inch
Colour Type: Colour / Monochrome

Additional info:

The V15CCM-IR-2 includes an integral camera and lens. The camera is high-resolution day/night; 24 IR LED illuminators are also provided. The 2.5 mm wide angle lens enables the camera to view the cell with no "blind spots."

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>IP cameras
Model code	V15CCM-IR-2
Chip Inch Size	1/3 inch
Colour Type	Colour / Monochrome
Resolution	600 resolution
Sensitivity Lux	0.1
Electrical Specifications	Voltage: 24 V AC, PoE
Focal Length mm	2.5
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	50
Synchronisation	Internal, Line Lock
Signal Mode	PAL, NTSC
Compression Type	MPEG-4 IP, H.264
Physical Specifications	Weight g: 1,600 Dimensions mm: 380 x 32
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50 Operating Humidity %: 0 ~ 90
Additional info	The V15CCM-IR-2 includes an integral camera and lens. The camera is high-resolution day/night; 24 IR LED illuminators are also provided. The 2.5 mm wide angle lens enables the camera to view the cell with no "blind spots."
