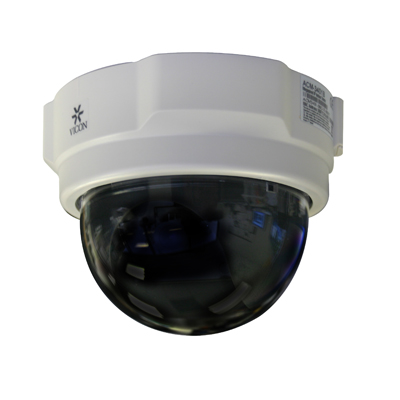

Vicon MPD-955DN-O is a megapixel camera with up to 1.3 resolution; micron megapixel CMOS module.

Technical Specification

Features:
  • Make: Vicon
  • Model code: MPD-955DN-O
  • Series: I-Onyx Series
  • Chip Inch Size: 1/3
  • Colour Type: Colour
Read more
Make Vicon
Manufacturer Vicon Industries
Model code MPD-955DN-O
Series I-Onyx Series
Chip Inch Size 1/3
Colour Type Colour
Resolution 1280
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0.05
Auto Iris Yes
Direct Drive Yes
Lens Mount C/CS
Electrical Specifications Voltage: 12 V DC
Power Consumption: 3.4 W
Focal Length mm 3.3 ~ 12 / F1.6
Mount Type Surface
Wide Dynamic Range Yes
Picture Elements HxV 1280 x 1024
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB >44
Synchronisation Internal
Signal Mode PAL, NTSC
Zoom Yes
Compression Type MPEG-4, JPEG
Network Properties Interface: LAN
Physical Specifications Dimensions mm: 151.7 x 115
Environmental Specifications Protection: IP66
Operating Temperature oC: -30 ~ +50
