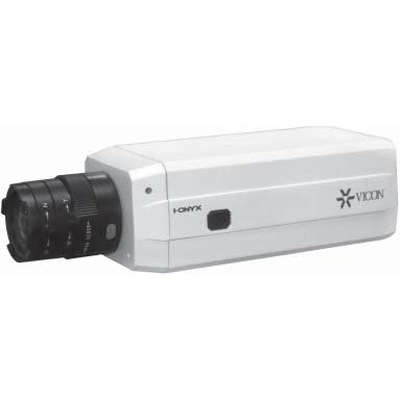

Vicon MP-980DN megapixel network camera with CS mount

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vicon MP-980DN megapixel network camera with CS mount

Features:

Make: Vicon
Model code: MP-980DN
Series: MP980 I-ONYX range
Chip Inch Size: 1/3 inch
Colour Type: Colour

Additional info:

Vicon's MP-980DN I-Onyx Megapixel Camera is a professionalseries fixed network camera featuring superb image quality and exceptional bandwidth efficiency. Day and night operation is achieved by a built-in removable IRcut filter, so the camera is able to maintain clear images24 hours a day.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Category	CCTV>IP cameras
Model code	MP-980DN
Chip Inch Size	1/3 inch
Colour Type	Colour
Resolution	1600 x 1200 resolution
Sensitivity Lux	0.03 Lux
Lens Mount	CS mount
Electrical Specifications	Voltage: 12 V DC, 24 V AC, PoE Power Consumption: 4.8 W
S/ N (Signal/ Noise) Ratio dB	45
Compression Type	H.264, MPEG-4, M-JPEG
Physical Specifications	Weight g: 664 Dimensions mm: 154 x 72 x 62
Environmental Specifications	Operating Temperature ^oC: 0 ~ 50
Additional info	Vicon's MP-980DN I-Onyx Megapixel Camera is a professionalseries fixed network camera featuring superb image quality and exceptional bandwidth efficiency. Day and night operation is achieved by a built-in removable IRcut filter, so the camera is able to maintain clear images24 hours a day.
