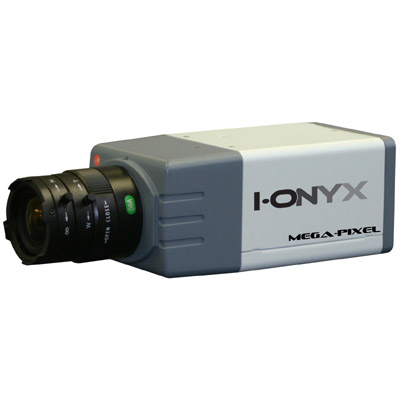

Vicon MP-955IR is a colour 1/3-inch CCTV camera with micron megapixel CMOS module.

Technical Specification

Features:
  • Make: Vicon
  • Model code: MP-955IR
  • Series: I-Onyx Series
  • Chip Inch Size: 1/3
  • Colour Type: Colour
Read more
Make Vicon
Manufacturer Vicon Industries
Model code MP-955IR
Series I-Onyx Series
Chip Inch Size 1/3
Colour Type Colour
Resolution 1280
Digital (DSP) Yes
Specialist Type Infrared
Sensitivity Lux 0.05
Auto Iris Yes
Direct Drive Yes
Lens Mount C/CS
Electrical Specifications Voltage: 12 V DC
Power Consumption: 6 W
Focal Length mm 3.3 ~ 12
Mount Type Surface
Wide Dynamic Range Yes
Picture Elements HxV 1280 x 1024
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB >44
Synchronisation Internal
Signal Mode PAL, NTSC
Zoom Yes
Compression Type MPEG-4, JPEG
Network Properties Interface: LAN
Physical Specifications Dimensions mm: 75.6 x 77 x 220
Environmental Specifications Protection: IP66
Operating Temperature oC: -20 ~ +50
