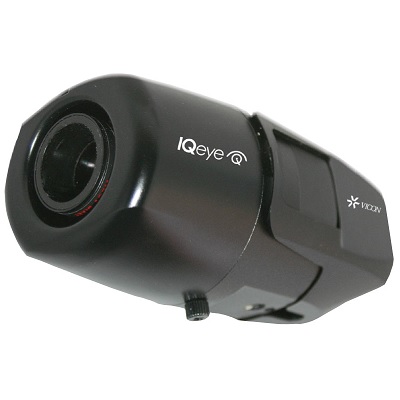

Vicon IQB91WI-A5-ME 720P megapixel camera

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vicon IQB91WI-A5-ME 720P megapixel camera

Features:

Make: Vicon
Model code: IQB91WI-A5-ME
Series: IQeye 9 series
Chip Inch Size: 1/2.8 inch
Colour Type: True Day / Night

Additional info:

Resolutions up to 5MP H.264 Main Profile + MJPEG compression Choice of varifocal or no lens models 30 fps @ HD720p, 30 fps @ 1080p 1 & 2MP WDR models available (100 dB) Two-way audio plus on-camera microphone True day/night movable IR filter Power-over-Ethernet (PoE), 12VDC, 24 VAC On-camera storage

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Vicon
Manufacturer	Vicon Industries
Model code	IQB91WI-A5-ME
Series	IQeye 9 series
Chip Inch Size	1/2.8 inch
Colour Type	True Day / Night
Resolution	720p resolution
Sensitivity Lux	<0.05 ~ 0.1 lux
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC, 24 V AC, PoE Power Consumption: <4.0 W
Focal Length mm	2.8 ~ 12
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 30 fps Interface: 10Base-T, 100Base-TX, RJ-45 Network Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, UDP multicast, APIPA, CIFS, SNMP, SMTP, Telnet
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Compression Type	H.264 (CBR/VBR); M-JPEG
Physical Specifications	Weight g: 165 Dimensions mm: 115 x 71 x 74
Environmental Specifications	Operating Temperature ^oC: 0 ~ 60 C (32 ~ 140 F)
System Requirements	Web Browser: Internet Explorer®; Safari®, Firefox®, Google Chrome®
Additional info	Resolutions up to 5MP H.264 Main Profile + MJPEG compression Choice of varifocal or no lens models 30 fps @ HD720p, 30 fps @ 1080p 1 & 2MP WDR models available (100 dB) Two-way audio plus on-camera microphone True day/night movable IR filter Power-over-Ethernet (PoE), 12VDC, 24 VAC On-camera storage
Download PDF version Download PDF version
