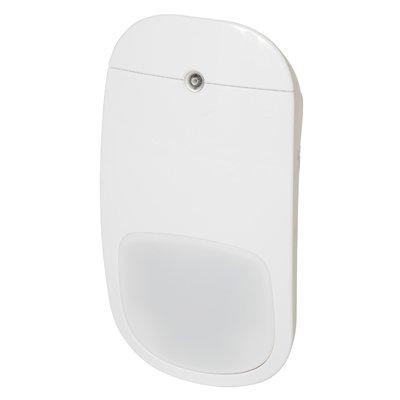

Vanderbilt WPIR Wireless 12m PIR detector PET

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt WPIR Wireless 12m PIR detector PET

Features:

Make: Vanderbilt
Model code: WPIR
PIR Detectors: Yes
Dual/ Quad Technology: Quad Technology Detectors
Coverage/ Range m: 12

Additional info:

The WPIR wireless detector is a passive infra red quad element motion detector which is supported by the SPC system. The device has a 12m detection range and has firmware configurable settings such as Sensitivity, Pulse Count, Supervision Time, LED operation and Pet Immunity.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Intruder Alarms>Intruder detectors
Model code	WPIR
PIR Detectors	Yes
Dual/ Quad Technology	Quad Technology Detectors
Coverage/ Range m	12
Pet Tolerance	Yes
Quad Element Sensor	Yes
Mount Type	Corner
Vertical Coverage	1.8 ~ 2.4 m
Selectable Pulse Count	Yes
Physical Specifications	Dimensions mm: 108 x 58 x 43
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 C (14 ~ 122 F)
Additional info	The WPIR wireless detector is a passive infra red quad element motion detector which is supported by the SPC system. The device has a 12m detection range and has firmware configurable settings such as Sensitivity, Pulse Count, Supervision Time, LED operation and Pet Immunity.
