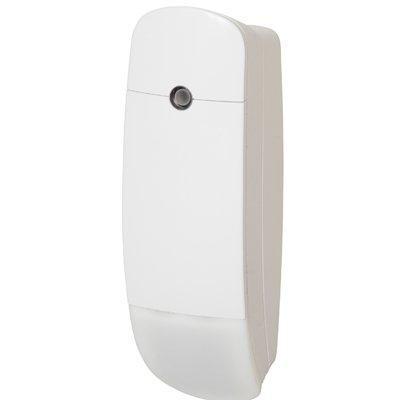

Vanderbilt WPIR-CRT Wireless curtain PIR detector

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt WPIR-CRT Wireless curtain PIR detector

Features:

Make: Vanderbilt
Model code: WPIR-CRT
PIR Detectors: Yes
Coverage/ Range m: 12
Angle of Detection ^o: 6

Additional info:

The WPIR-CRT wireless detector is a passive infra curtain motion detector which is supported by the SPC system. The device has a 12m detection range and a 6° detection angle. The device has firmware configurable settings such as Sensitivity, Pulse Count, Supervision Time and LED behavior.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Intruder Alarms>Intruder detectors
Model code	WPIR-CRT
PIR Detectors	Yes
Coverage/ Range m	12
Angle of Detection ^o	6
Mount Type	Corner
Vertical Coverage	1.8 ~ 2.4 m
Selectable Pulse Count	Yes
Physical Specifications	Dimensions mm: 108 x 58 x 43
Environmental Specifications	Operating Temp ^oC: -10 ~ +50 C (14 ~ 122 F)
Additional info	The WPIR-CRT wireless detector is a passive infra curtain motion detector which is supported by the SPC system. The device has a 12m detection range and a 6° detection angle. The device has firmware configurable settings such as Sensitivity, Pulse Count, Supervision Time and LED behavior.
Download PDF version Download PDF version
