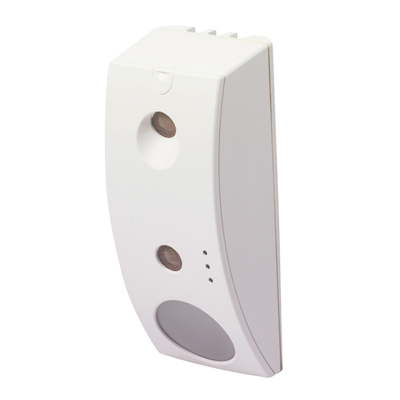

Vanderbilt UP370T - PIR/US detector, 10 m wide angle

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt UP370T - PIR/US detector, 10 m wide angle

Features:

Make: Vanderbilt
Model code: UP370T
PIR Detectors: Yes
Dual/ Quad Technology: Dual Technology Detectors
Coverage/ Range m: 10

Additional info:

Appealing design, reliable motion detection, professional antimask surveillance and excellent immunity to disturbances make the UP370T the ideal motion detector for demanding commercial, industrial and high-security applications.

Contact manufacturer Contact manufacturer

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Intruder Alarms>Intruder detectors
Model code	UP370T
PIR Detectors	Yes
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	10
Angle of Detection ^o	90
Power Consumption	18 mA
Dual Element Sensor	Yes
Anti-Masking	Yes
Electrical Specifications	Power Supply: 8 ~ 16
Physical Specifications	Dimensions mm: 70 x 170 x 63
Environmental Specifications	Operating Temp ^oC: -20 ~ +55
Additional info	Appealing design, reliable motion detection, professional antimask surveillance and excellent immunity to disturbances make the UP370T the ideal motion detector for demanding commercial, industrial and high-security applications.
