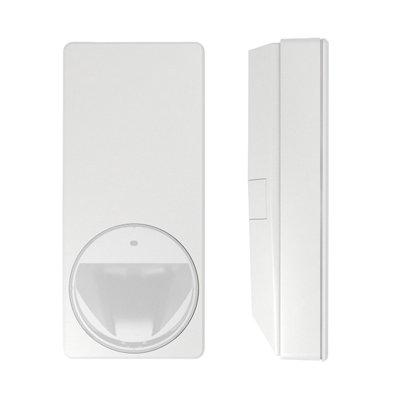

Vanderbilt PDM-IXE12 DUAL detector 10.587GHz

Technical Specification

Features:

Make: Vanderbilt
Model code: PDM-IXE12
Series: MAGIC Dual motion detector
Dual/ Quad Technology: Dual Technology Detectors
Coverage/ Range m: 12 m coverage

Additional info:

MAGIC motion detector PDM-IXE12 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Model code	PDM-IXE12
Series	MAGIC Dual motion detector
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	12 m coverage
Pet Tolerance	Yes
Power Consumption	4.8 mA (rms) 9.0 mA (max peak)
Dual Element Sensor	Yes
Anti-Masking	Yes
Electrical Specifications	Power Supply: 9 ~ 16 V DC
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F)
Additional info	MAGIC motion detector PDM-IXE12 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
