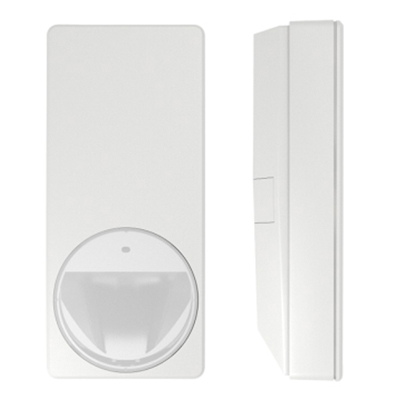

Vanderbilt PDM-IXA12 dual motion detector

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: PDM-IXA12
  • PIR Detectors: Yes
  • Dual/ Quad Technology: Dual Technology Detectors
  • Coverage/ Range m: 12
Read more
Additional info:

MAGIC motion detector PDM-IXA12 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code PDM-IXA12
PIR Detectors Yes
Dual/ Quad Technology Dual Technology Detectors
Coverage/ Range m 12
Microwave Yes
Pet Tolerance Yes
Dual Element Sensor Yes
Electrical Specifications Power Supply: 9 ~ 16 V DC
Environmental Specifications Operating Temp oC: -10 ~ +55 C (14 ~ 131 F)
Power Consumption 9.0 mA
Additional info

MAGIC motion detector PDM-IXA12 is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Matchtec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
