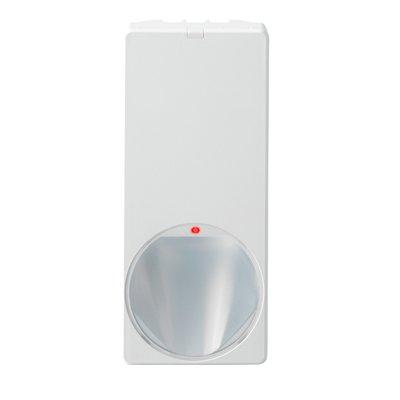

Vanderbilt PDM-I18T PIR AM detector

Technical Specification

Features:

Make: Vanderbilt
Model code: PDM-I18T
Series: Magic Mirror PIR detector
PIR Detectors: Yes
Dual/ Quad Technology: Dual Technology Detectors

Additional info:

MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Model code	PDM-I18T
Series	Magic Mirror PIR detector
PIR Detectors	Yes
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	18 m coverage
Pet Tolerance	Yes
Dual Element Sensor	Yes
Anti-Masking	Yes
White Light Filter	Yes
Electrical Specifications	Power Supply: 9 ~ 16 V DC
Environmental Specifications	Operating Temp ^oC: -10 ~ +55 C (14 ~ 131 F)
Additional info	MAGIC motion detector PDM-I18T is impressive with its modern and elegant design. Its style is suitable for all installation situations. Together with the enhanced Visatec algorithm, its patented MAGIC mirror provides reliable detection of intruders and the highest false alarm immunity. Flexible installations can be carried out quickly and error-free due to features like Auto Walktest and new End-of-Line concept (EoL).
