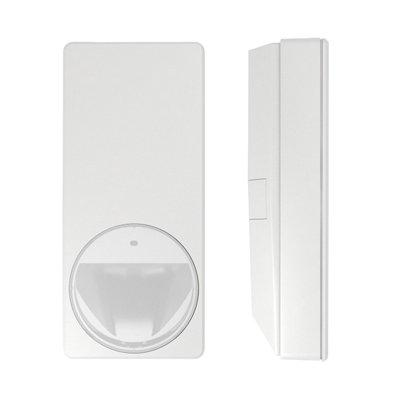

Vanderbilt PDM-E-IXD12 E-Bus Dual detector

Technical Specification

Features:
Read more
Additional info:

The PDM-E-IXD12 E-BUS Dual motion detector offers reliable detection of intruders and high false alarm immunity. Its performance is based on an improved version of Vanderbilt`s Matchtec algorithm, which combines passive infrared (PIR) and microwave (MW) channels to make extraordinarily accurate decisions on motion within their detection zone. Intelligent processing routines analyse the relative strength of the IR and MW signals received from a moving object in order to make sound decisions. It is even possible to use multiple detectors in close proximity to each other, since the algorithm reduces interference between the MW modules. This increases flexibility in selecting the installation site. All MAGIC BUS models are designed as addressable detectors on the E-BUS communication interface - a 2-wire serial BUS with multi-master properties. This dramatically reduces wiring, installation equipment and labor costs, while providing benefits of remote services. Each MAGIC BUS detector also includes an additional zone input for convenient connection of an additional external device, saving time and effort of having to wire back to the panel.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code PDM-E-IXD12
Series Magic E-Bus PIR Motion Detector
PIR Detectors Yes
Dual/ Quad Technology Dual Technology Detectors
Coverage/ Range m 12 m coverage
Microwave Yes
Pet Tolerance Yes
Dual Element Sensor Yes
Anti-Masking Yes
Mount Type Wall, Ceiling
Electrical Specifications Power Supply: 9 ~ 16 V DC
Environmental Specifications Operating Temp oC: -10 ~ +55 C (14 ~ 131 F)
Additional info
  • The PDM-E-IXD12 E-BUS Dual motion detector offers reliable detection of intruders and high false alarm immunity.
  • Its performance is based on an improved version of Vanderbilt`s Matchtec algorithm, which combines passive infrared (PIR) and microwave (MW) channels to make extraordinarily accurate decisions on motion within their detection zone.
  • Intelligent processing routines analyse the relative strength of the IR and MW signals received from a moving object in order to make sound decisions.
  • It is even possible to use multiple detectors in close proximity to each other, since the algorithm reduces interference between the MW modules.
  • This increases flexibility in selecting the installation site.
  • All MAGIC BUS models are designed as addressable detectors on the E-BUS communication interface - a 2-wire serial BUS with multi-master properties.
  • This dramatically reduces wiring, installation equipment and labor costs, while providing benefits of remote services.
  • Each MAGIC BUS detector also includes an additional zone input for convenient connection of an additional external device, saving time and effort of having to wire back to the panel.
Download PDF version Download PDF version
