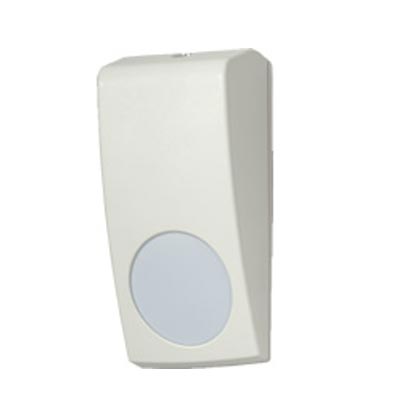

Vanderbilt (formerly known as Siemens Security Products) IRM120C - PIR/MW motion detector, 12 m wide angle

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Vanderbilt (formerly known as Siemens Security Products) IRM120C - PIR/MW motion detector, 12 m wide angle

Features:

Make: Vanderbilt
Model code: IRM120C
PIR Detectors: Yes
Dual/ Quad Technology: Dual Technology Detectors
Coverage/ Range m: 12

Additional info:

Reliable recognition of intruders is ensured with sophisticated digital MATCHTEC signal processing and interconnection between the microwave and passive-infrared sections. Both subsystems are subject to a multi-criteria analysis, and any unwanted interference is recognised and suppressed by the individual subsystems. A special protection concept also makes the detector insensitive to environmental problems such as draughts, temperature fluctuations, electromagnetic interference, and ingress by insects or external light.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Intruder Alarms>Intruder detectors
Model code	IRM120C
PIR Detectors	Yes
Dual/ Quad Technology	Dual Technology Detectors
Coverage/ Range m	12
Angle of Detection ^o	90
Microwave	Yes
Pet Tolerance	Yes
Power Consumption	6 ~ 8
White Light Filter	Yes
Wall/Ceiling Mount	Wall/Ceiling
Electrical Specifications	Power Supply: 8 ~ 16
Physical Specifications	Dimensions mm: 50 x 115 x 41
Environmental Specifications	Operating Temp ^oC: -20 ~ +55
Additional info	Reliable recognition of intruders is ensured with sophisticated digital MATCHTEC signal processing and interconnection between the microwave and passive-infrared sections. Both subsystems are subject to a multi-criteria analysis, and any unwanted interference is recognised and suppressed by the individual subsystems. A special protection concept also makes the detector insensitive to environmental problems such as draughts, temperature fluctuations, electromagnetic interference, and ingress by insects or external light.
