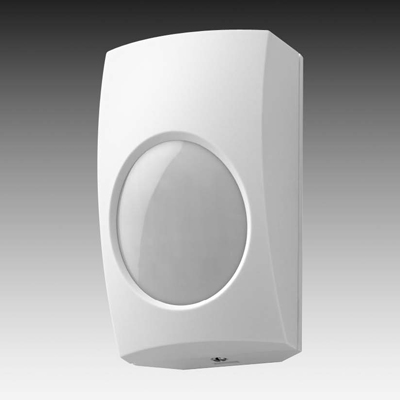

Siemens IR80UL intruder detector with intelligent signal evaluation

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: IR80UL
  • PIR Detectors: Yes
  • Coverage/ Range m: 12 x 12
  • Angle of Detection o: 45
Read more
Additional info:

12 m wide-angle Fresnel lens. Pet immunity up to 12 kg. Intelligent signal evaluation. Temperature compensation. Choice of two application settings.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code IR80UL
PIR Detectors Yes
Coverage/ Range m 12 x 12
Angle of Detection o 45
Pet Tolerance Yes
Indoor/Outdoor Indoor/Outdoor
Electrical Specifications Power Supply: 9 ~ 16 V DC
Physical Specifications Dimensions mm: 51 x 45 x 87
Environmental Specifications Operating Temp oC: -20 ~ +55
Power Consumption 12 mA
Additional info 12 m wide-angle Fresnel lens. Pet immunity up to 12 kg. Intelligent signal evaluation. Temperature compensation. Choice of two application settings.
