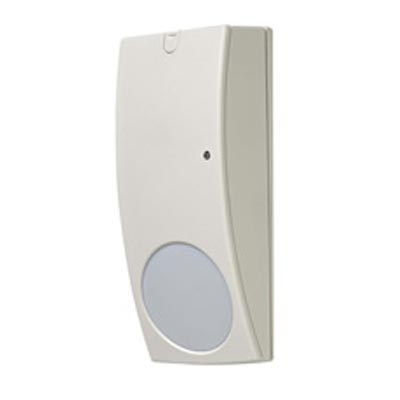

Siemens IR120MD - PIR detector, 12 m wide angle, black mirror optics

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Siemens IR120MD - PIR detector, 12 m wide angle, black mirror optics

Features:

Make: Vanderbilt
Model code: IR120MD
PIR Detectors: Yes
Coverage/ Range m: 12
Angle of Detection ^o: 90

Additional info:

Swisstec PIR with pet immunity up to 40 kg. With 18x3 triplex zone black mirror and DSP. Accessories: curtain mirror set (IRS122), pet clip (IRMC104), wall mount bracket (IRUM20), ceiling mount bracket (IRUM30).

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Intruder Alarms>Intruder detectors
Model code	IR120MD
PIR Detectors	Yes
Coverage/ Range m	12
Angle of Detection ^o	90
Pet Tolerance	Yes
Power Consumption	6 W
Temperature Compensation	Yes
Sealed Optics	Yes
White Light Filter	Yes
Wall/Ceiling Mount	Wall/Ceiling
Electrical Specifications	Power Supply: 8 ~ 16 VDC
Physical Specifications	Dimensions mm: 50 x 115 x 41
Environmental Specifications	Operating Temp ^oC: -20 ~ +55
Additional info	Swisstec PIR with pet immunity up to 40 kg. With 18x3 triplex zone black mirror and DSP. Accessories: curtain mirror set (IRS122), pet clip (IRMC104), wall mount bracket (IRUM20), ceiling mount bracket (IRUM30).
