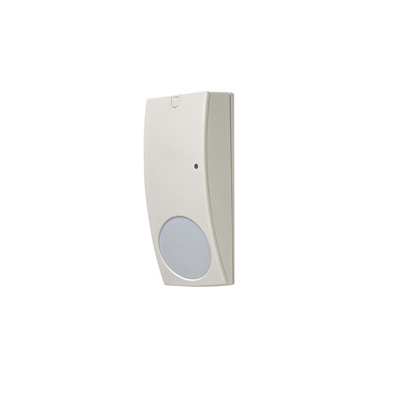

Vanderbilt IR100B Intruder detector

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vanderbilt
Model code: IR100B
PIR Detectors: Yes
Coverage/ Range m: 12
Angle of Detection ^o: 45

Additional info:

Versatile in application. A discrete ergonomic design that fits to every environment, good pet immunity and advanced signal processing make IR100B ideal for residential and smaller commercial applications. Safe and easy installation. The versatile housing base is designed for direct wall, 45° and corner mounting without additional accessories. Outstanding immunity. IR100B offers uncompromised catch performance paired withhigh immunity to environmental influences. Safe detection. The 52 zone triplex mirror optics guarantee high detection integrity and the multi-criteria signal analysis system differentiates intelligently and reliably betweenintruders and disturbance signals.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Intruder Alarms>Intruder detectors
Model code	IR100B
PIR Detectors	Yes
Coverage/ Range m	12
Angle of Detection ^o	45
Pet Tolerance	Yes
Power Consumption	9 mA
Temperature Compensation	Yes
Sealed Optics	Yes
Mount Type	Wall, Corner
White Light Filter	Yes
Electrical Specifications	Power Supply: 9 ~ 16 V DC
Physical Specifications	Dimensions mm: 50 x 115 x 41
Environmental Specifications	Operating Temp ^oC: -20 ~ 55
Additional info	Versatile in application. A discrete ergonomic design that fits to every environment, good pet immunity and advanced signal processing make IR100B ideal for residential and smaller commercial applications. Safe and easy installation. The versatile housing base is designed for direct wall, 45° and corner mounting without additional accessories. Outstanding immunity. IR100B offers uncompromised catch performance paired with high immunity to environmental influences. Safe detection. The 52 zone triplex mirror optics guarantee high detection integrity and the multi-criteria signal analysis system differentiates intelligently and reliably between intruders and disturbance signals.
Download PDF version Download PDF version
