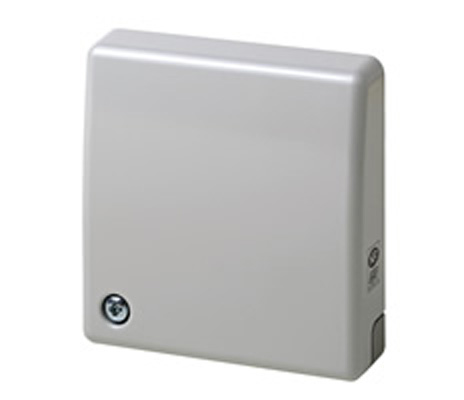

Vanderbilt GM530 Intruder detector

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

Features:

Make: Vanderbilt
Model code: GM530
Power Consumption: 3 mA
Accessories: Seismic detector
Power Supply: 7 ~ 16

Additional info:

Low profile detector for applications with limited space. Around-the-clock monitoring of safes, night deposits and automatic cash dispenser. SENSTEC sensor and micro-controller-based signal processing system. Continuous surveillance of sensor and electronic circuit. The GM530 recognises attacks on safes, cash dispenser, night deposits and strong rooms, as well as attacks with explosives or attempted entry using modern tools such as diamond-tipped drills, mechanical and hydraulic pressure tools, flame cutters, thermal-lancers or water jet.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Vanderbilt
Manufacturer	Vanderbilt Industries
Category	Intruder Alarms>Intruder detectors
Model code	GM530
Power Consumption	3 mA
Accessories	Seismic detector
Electrical Specifications	Power Supply: 7 ~ 16
Physical Specifications	Dimensions mm: 89 x 89 x 22
Environmental Specifications	Operating Temp ^oC: -20 ~ +60
Additional info	Low profile detector for applications with limited space. Around-the-clock monitoring of safes, night deposits and automatic cash dispenser. SENSTEC sensor and micro-controller-based signal processing system. Continuous surveillance of sensor and electronic circuit. The GM530 recognises attacks on safes, cash dispenser, night deposits and strong rooms, as well as attacks with explosives or attempted entry using modern tools such as diamond-tipped drills, mechanical and hydraulic pressure tools, flame cutters, thermal-lancers or water jet.
