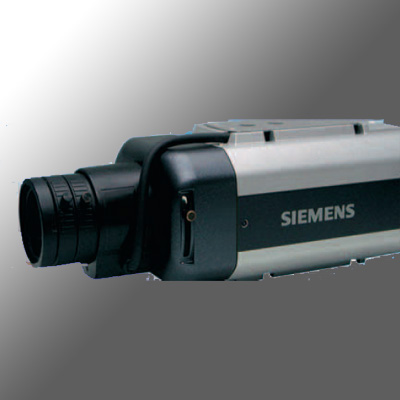

Siemens’ new hybrid IP cameras deliver the best of both worlds - in more ways than one

Product Profile

Using Siemens' Hybrid Technology, the new IP camera range offers the best of both analogue and digital, having a standard analogue connection for traditional CCTV systems and an Ethernet connector for direct connection to an IP network.

But - more importantly - each of the three, new high-sensitivity cameras can also be switched between MJPEG and MPEG4 encoding to offer complete flexibility.

So - as well as simplifying the choice for installers, the hybrid IP cameras also reduces stocking, as distributors now need to keep one range to cover both standards.

  • Three new models CCIC1345-LP, CCIS1345-LP, CCIW1345-LP all support both MJPEG and MPEG4 standards
  • True digital recording over networks
  • Playback via standard PC video players
  • User-friendly and secure

The new range comprises ‘colour', ‘day-night' and ‘day-night with wide dynamic' models for use in a multitude of applications.  High-performance CCD sensors permit very high light-sensitivity to deliver outstanding images indoors and out, day and night.

Digital recording of streaming images over a network is possible in MJPEG mode via Siemens' SISTORE MX - the hybrid video recording system - or SISTORE MX NVS when using a standard PC running Network Video Software.  When in MPEG4 mode, streaming recording is possible using video codec in SISTORE CX (version 3.5).

The cameras support Real Time Streaming Protocol (RSTP) and when in MPEG4 mode, video streams can be replayed on a standard PC video player.  This means they can also be integrated into existing applications very easily.

It is possible to access the cameras and view the images from any standard Web browser.  Passwords, user-profiles, and integrated firewall, ensure protection against unwanted access.

Read more

Technical Specification

Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code CCIW1345-LP
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution 540
Digital (DSP) Yes
Sensitivity Lux 0.1 (B/W) 0.4 (Colour)
Electrical Specifications Voltage: 24 V AC
Wide Dynamic Range Yes
Network Properties Image Frame Rate: 25 fps
Network Protocols: HTTPS, RTSP, TCP/IP, NTP, DHCP, DNS, SMTP
Back Light Compensation Yes
Auto Gain Control Yes
Electronic Shutter Range 1/50 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB >50
Synchronisation Internal: crystal, External: Line Lock
Signal Mode PAL/NTSC
Y/ C (Video Output) 1.0 Vpp (75 Ohm), BNC
Compression Type MPEG4 / MJPEG
Physical Specifications Dimensions mm: 62.6 x 76 x 121.3
Additional info Wide dynamic range.  Allows streaming recording.  PTZ control.  Integrated activity detection.  External alarm input.  Alarm and message forwarding via email or SMS.  Integrated microphone.  Playback via standard PC video players.
