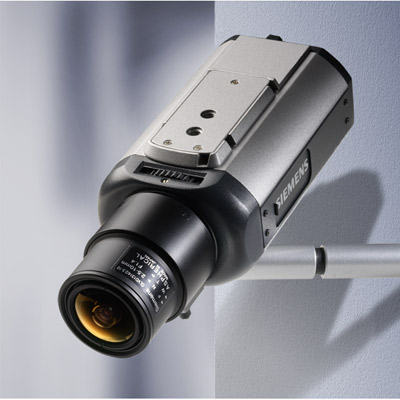

Siemens cameras – attractive and powerful for any application

Product Profile

Recognising the market requirement for high quality images, even under variable lighting conditions, the Siemens range of cameras offers options to meet any application.

The range features conventional CCTV cameras, including hybrid IP models, fixed domes (with the possibility of migrating to IP through an optional module), speed domes and an all-in-one auto focus camera range.

Applications range from retail and office environments to transportation, petrol stations and city centres.

One highlight from the cameras and dome range is the new "All-in-one" auto focus cameras.

"All-in-one" cameras

The cameras have been designed with ease of installation in mind, featuring an all in one lens-camera-housing-bracket, with the zoom lens (up to 22x optical zoom) already connected and back focused.  As an all-in-one option, this means a complete system in a single box, with one order, less processing, shorter delivery times and on-site savings on installation time.

The outdoor models have the camera with lens encased in an IP66 approved watertight housing which includes an internal heater, with even the mounting bracket and sun protection cover included, thereby making installation even easier and more cost effective.

The day-night model ensures optimal picture quality, whatever the lighting conditions during the day, and when used with infrared lighting, providing crisp monochrome images at night.  There is also no need for operator intervention to switch from day to night mode - once the switch-over light level is set, this occurs automatically.

Suitable application: monitoring a petrol station

A suitable application could be monitoring a petrol station.  Due to the optical 22x auto focus zoom you can easily go from a wide angle shot to a zoomed image, e.g. triggered by the lifting of the petrol pump, to get a closer view of the driver and number plate.  In case payment is not made, this could be used as evidence.
Read more

Technical Specification

Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code CCIS1337-LP
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution 540
Digital (DSP) Yes
Sensitivity Lux 0.08 @ F1.4
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC / 24 V AC / PoE
Picture Elements HxV 752 x 582
Network Properties Image Frame Rate: 25 / 30 fps
Control: RS-485
Back Light Compensation Yes
Auto Gain Control Yes
Electronic Shutter Range 1/50 ~ 1/100,000
S/ N (Signal/ Noise) Ratio dB >50
Synchronisation Internal: with crystal, External: Line Lock
Signal Mode PAL, NTSC
Zoom Yes
Compression Type M-JPEG
Environmental Specifications Protection: IP66
