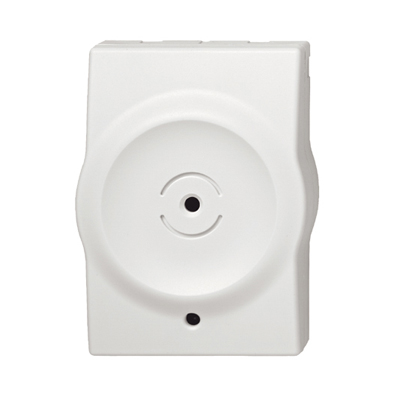

Vanderbilt AGB600 audio glass break detector

Technical Specification

Features:
  • Make: Vanderbilt
  • Model code: AGB600
  • Glassbreak Detectors: Yes
  • Radius m: 8.5
  • Wall/Ceiling Mount: Wall / Ceiling
Read more
Additional info:

Versatility of application is ensured by the safe and reliable detection of glass breakage occuring on objects both small and large as well as on single or multiple glazed objects fitted with simple window glass.

Read more
Make Vanderbilt
Manufacturer Vanderbilt Industries
Model code AGB600
Glassbreak Detectors Yes
Radius m 8.5
Wall/Ceiling Mount Wall / Ceiling
Electrical Specifications Power Supply: 8 ~ 16 VDC
Physical Specifications Dimensions mm: 80 x 60 x 23
Environmental Specifications Operating Temp oC: -10 ~ +55
Power Consumption 8 mA
Additional info

Versatility of application is ensured by the safe and reliable detection of glass breakage occuring on objects both small and large as well as on single or multiple glazed objects fitted with simple window glass.
