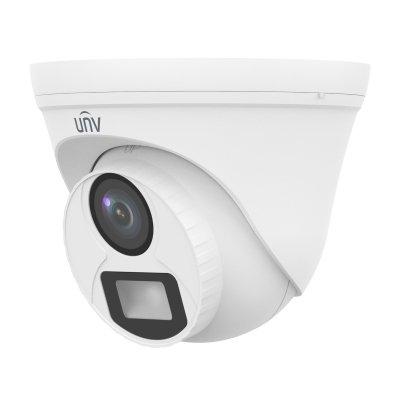

Uniview (UNV) UAC-T115-AF28-W 5MP ColorHunter Fixed Warm Light Turret Analogue Camera
Technical Specification
- Make: Uniview (UNV)
- Model code: UAC-T115-AF28-W
- Series: Dolphin Series
- Colour Type: Colour / Monochrome
- Resolution TVL: 5 MP
5MP high quality image TVI/AHD/CVI/CVBS Supports white light illumination, 24/7 color images Supports 180° horizontal flip, 180° vertical flip OSD configuration menu, easy to operate IP67 waterproof and dustproof design, high reliability OSD configuration menu in 11 languages Built-in microphone for high quality audio transmission via coaxial cables
Read more| Make | Uniview (UNV) |
|---|---|
| Manufacturer | Zhejiang Uniview Technologies Co.,Ltd |
| Category | CCTV>CCTV cameras |
| Model code | UAC-T115-AF28-W |
| Series | Dolphin Series |
| Colour Type | Colour / Monochrome |
| Resolution TVL | 5 MP |
| Sensitivity lux | 0.01 lux (F1.6, AGC ON) ; 0 lux (white light on) |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: MAX 2.3W |
| Focal Length mm | 2.8 mm |
| Mount Type | Corner, Pole, Wall, Pendant |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s |
| Video Output | BNC, supports TVI/AHD/CVI/CVBS |
| Physical Specifications |
Dimension mm: Φ118 x 96 Weight g: 210g |
| Environmental Specifications |
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67 Operating Humidity %: < 95 |
Product description
Uniview UAC-T115-AF28-W 5MP ColourHunter Fixed Turret Analogue Camera
The Uniview UAC-T115-AF28-W is an advanced 5MP ColourHunter fixed turret analogue camera, equipped with a superior 1/2.7-inch CMOS sensor. This camera effectively adapts to multiple transmission standards, including TVI, AHD, CVI, and CVBS, offering flexible networking options for a variety of security needs. It guarantees low-cost, long-range, interference-free HD video transmission through coaxial cable without time delay, and supports both audio input and synchronised audio-visual transmission.
Key Features
- 5MP high-resolution imagery
- 24/7 colour image capture empowered by white light illumination
- 180° flip functionality for flexible installation options
- Easy operation through an OSD configuration menu available in 11 languages
- Durable IP67-rated waterproof and dustproof construction
- Built-in microphone for superior audio quality over coaxial cables
Ideal Use Cases
The UAC-T115-AF28-W is ideal for professional security environments requiring robust performance and flexibility. Its IP67 rating and wide operating temperature range make it suitable for both outdoor and indoor applications, providing reliable surveillance solutions across diverse environments.
