Hanwha Vision Security camera systems

• 5-in-1 8CH Pentabrid DVR AHD/HDTVI/HDCVI/CVBS/IP inputs Max. Analog 8CH + NW 10CH, up to 8MP H.265, H.264, MJPEG codec 8/8fps@8MP, 12/12fps@5MP recording Coaxial control Up to 4 SATA HDDs(6TB/HDD) HDMI/VGA Dual monitor P2P service (QR code connect)

Support up to 1,920 x 1,080 resolution Contrast ratio 2250 :1（Typ）, 2000:1（Min） Fast response time 8ms Video input : HDMI, DVI, VGA, BNC Panel life 30,000 hours Weight : 5.6Kg Designed and tested on 24/7 operation

22” FHD Monitor, support up to 1920*1080 60Hz (FHD) Brightness 250 cd/m²（Typ）, Contrast 2000:1(Min), 3000:1(Typ) Viewing Angle (H/V) : 178°/178°, Response Time : 6.5ms(Typical) Video Input : HDMI(1), VGA(1) Framelss design with monitor stand Panel Life : 30,000 hours Designed and tested on 24/7 operation

Hanwha Techwin iES4024GP provides wire speed 10/100/1000 Gigabit Ethernet PoE/Non-PoE switching features that are targeted for high quality video over IP. It provides 2 combo ports for high speed connectivity. The IP clustering feature in the iES4024GP allows for the interconnection of 36 switches to be managed in a logical group using a single IP address. Advanced QoS features are provided to minimise latency and give priority for IP video packets.

Hanwha Techwin SCB-9080 is a weather resistant thermal camera.

Hanwha Techwin ieS4028FP provides wire speed 10/100 Fast Ethernet PoE/Non-PoE switching with features targeted for voice and high quality video over IP. The IP clustering feature allows up to 36 switches to be managed in a logical group using a single IP address. Advanced QoS features are provided to minimise latency and give priority for voice and video packets. For PoE use, It supports 15.4W per port (802.3af) and up to 180W total consumption.

In challenging weather (fog, smoke, rain) or lighting conditions (complete darkness, backlighting), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. Wisenet T series thermal cameras provide high contrast images based on temperature differences between the object and background, to easily detect incidents.

Video decoding up to 48 cameras on HDMI / VGA 1 camera decoding on BNC Clone & Expand mode support (HDMI, VGA) Maximum 4K resolution@HDMI, 1080p@VGA Tile merge function Decode @12MP, 8MP, 5MP, 3MP, 1080p, 720p, 4CIF H.265, H.264, MJPEG codec support Various view mode, Hallway View (HDMI) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 36 (32) / 2V / 3V (VGA) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V Up to 20 layouts and sequence Management using web interface

32 inch UHD Monitor, support up to 3840×2160@60Hz Brightness 300 cd/m²（Typ）, Contrast 700:1（Min) 1000:1（Typ） Viewing Angle (H/V) : 178°/178°, Response Time : 14ms(Typical) Video Input : HDMI, DP Frameless design with monitor stand Panel Life : 30,000 hours Designed and tested on 24/7 operation

Supports the TNB-9000 and compatible Canon EF mount lenses for full 8K resolution support Active cooling/heating Dustproof, waterproof design Anti-reflective, low-iron window with 18° tilt for high optical performance Aluminum construction with white powder coat finish

• 5-in-1 16CH Pentabrid DVR AHD/HDTVI/HDCVI/CVBS/IP inputs Max. Analog 16CH + NW 8CH, up to 8MP H.265, H.264, MJPEG codec 15/12fps@4MP, 15/12fps@2MP recording Coaxial control Up to 4 SATA HDDs(6TB/HDD) HDMI/VGA Dual monitor P2P service (QR code connect)

10.1° LED 1080p resolution monitor with 2 MP Full HD network camera Latency-free viewing Inconspicuous integrated camera Face Detection display for visual deterrent (Coloured bounding box around detected face) Wide Dynamic Range (150dB) Advanced video analytics, motion detection Customisable text overlay with pre-configured “Recording in progress” OSD Internally powered Camera Micro SD/SDHC/SDXC memory slot (256GB) H.265, H.264, MJPEG triple codec, Multiple streaming IP video and network manageable PoE+ / 12v DC powered Forms part of business’s Crime Prevention Through Environmental Design (CPTED) strategy Prevents shrinkage by showing potential thieves they are live on camera Ideal for retail use at key areas such as entrances and display racks Powerful video performance and crisp image quality with ultra low light sensitivity and wide dynamic range Automatically switches from slide show mode to direct live view when motion is detected (SD card required) Fully compatible with Wisenet SSM/WAVE/NVR, 3rd party VMS and external devices with alarm input/output, API and ONVIF

Interchangeable 4ea x 2MP / 5MP lens modules8MP to 20MP resolution depend on the combination of lens modules 60fps@2MP, 30fps@5MP (H.265 / H.264) WDR 150dB with 2MP lens module, 120dB with 5MP lens module 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module) 3.7mm, 4.6mm, 7mm fixed lens (5MP module) H.265, H.264, MJPEG codec, Multi streaming support Video analytics, WiseStream Ⅱ IP6K9K, IK10, SD / SDHC / SDXC memory 4 slots Stainless steel housing for harsh installation environments Lens modules are required, not included with the camera

Hanwha Techwin SCU-EVAC is an explosion proof positioning system. It offers continuous 360° rotation with an extended -90° to 90° tilt range. SCU-EVAC features integrated pan/tilt and housing.

32° LED 1080p resolution monitor with 2 MP Full HD network camera Latency-free viewing Inconspicuous integrated camera Face Detection display for visual deterrent (Coloured bounding box around detected face) Wide Dynamic Range (150dB) Advanced video analytics, motion detection Customisable text overlay with pre-configured “Recording in progress” OSD Internally powered Camera Micro SD/SDHC/SDXC memory slot (256GB) H.265, H.264, MJPEG triple codec, Multiple streaming IP video and network manageable Additional HDMI input Multi-crop streaming Forms part of business’s Crime Prevention Through Environmental Design (CPTED) strategy Prevents shrinkage by showing potential thieves they are live on camera Ideal for retail use at key areas such as entrances and display racks Powerful video performance and crisp image quality with ultra low light sensitivity and wide dynamic range Automatically switches from slide show mode to direct live view when motion is detected (SD card required) Fully compatible with Wisenet SSM/WAVE/NVR, 3rd party VMS and external devices with alarm input/output, API and ONVIF

27° LED 1080p resolution monitor with 2 MP Full HD network camera Latency-free viewing Inconspicuous integrated camera Face Detection display for visual deterrent (Coloured bounding box around detected face) Wide Dynamic Range (150dB) Advanced video analytics, motion detection Customisable text overlay with pre-configured “Recording in progress” OSD Internally powered Camera Micro SD/SDHC/SDXC memory slot (256GB) H.265, H.264, MJPEG triple codec, Multiple streaming IP video and network manageable Additional HDMI input Multi-crop streaming Forms part of business’s Crime Prevention Through Environmental Design (CPTED) strategy Prevents shrinkage by showing potential thieves they are live on camera Ideal for retail use at key areas such as entrances and display racks Powerful video performance and crisp image quality with ultra low light sensitivity and wide dynamic range Automatically switches from slide show mode to direct live view when motion is detected (SD card required) Fully compatible with Wisenet SSM/WAVE/NVR, 3rd party VMS and external devices with alarm input/output, API and ONVIF

Maximum 8MP resolution (1/1.2” sensor) 5.9~13.3mm(2.25x) motorized varifocal Long range WiseIR distance up to 60m (196.85ft) Color: 0.03Lux(F1.5, 1/30sec, 30IRE) BW: 0.031Lux(F1.5, 1/30sec, 30IRE) Support BestShot and full attributes Support Dynamic Privacy Masking AI-based Image enhancement

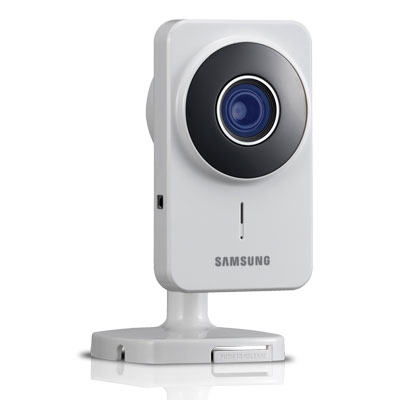

Hanwha Techwin SNH-1011 is a true day/night IP camera with free web portabl and push notification features. The camera's night vision offer clear view with built-in infra-red LEDs.

Back box for outdoor vandal domes.

White cap to match camera body

• 5-in-1 16CH Pentabrid DVR AHD/HDTVI/HDCVI/CVBS/IP inputs Max. Analog 16CH + NW 2CH(Max. 18CH), up to 8MP H.265, H.264, MJPEG 8fps@8MP, 12fps@5MP, 30fps@2MP recording Coaxial control Smart search(only Network camera) Up to 2 SATA HDDs(6TB/HDD) HDMI/VGA Dual monitor P2P service(QR code connect)

Support BestShot and full attributes Support Dynamic Privacy Masking AI-based Image enhancement extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine) Support Wisepower(Power monitoring) Device certificate(Hanwha Vision Root CA), Secure storage(Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM 2 SD slots edge storage

Maximum 8MP resolution (1/1.2” sensor) 5.9~13.3mm(2.25x) motorized varifocal Color: 0.03Lux(F1.5, 1/30sec, 30IRE) BW: 0.003Lux(F1.5, 1/30sec, 30IRE) Support BestShot and full attributes Support Dynamic Privacy Masking AI-based Image enhancement extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine) Support Wisepower(Power monitoring)

The 20? tilt on this aluminum mounting solution is designed to maximize your effective field of view with wall-mounted fisheye or dome cameras. This adapter is compatible with the following camera units: XNF-9010RV XNF-9010RVM XND-9082RV XND-8082RV XND-6081RV XND-6081REV XND-8081RV XND-8081REV PND-A9081RV Wall mount is white colored to match camera.

2 megapixel (1920 x 1080) resolution Built-in 2.8mm fixed lens 30fps@ all resolutions (H.264) H.264, MJPEG codec supported, Multiple streaming Day & Night (ICR), WDR (120dB) Tampering, Motion detection Micro SD/SDHC memory slot (Max. 32GB), PoE Hallway view, WiseStream II support IR viewable length 30m IP66 support Genetec Stratocast compatible

2 Megapixel (1920 x 1080) resolution H.265, H.264, MJPEG codec support, Multiple streaming 30fps@2MP (H.265 / H.264) HDMI Monitor output for single/quad view extremeWDR (120dB), Defog, DIS Tampering, Loitering, Directional detection, Fog detection, Audio detection Motion detection microSDXC Memory slot (Maximum 2 x 256GB), Hallway View, WiseStream II LDC, PoE / 12V DC, Bi-directional audio support

Exchangeable 4ea x 2MP / 5MP lens modules8MP to 20MP resolution depend on the combination of lens modules 60fps@2MP, 30fps@5MP (H.265 / H.264) WDR 150dB with 2MP lens module, 120dB with 5MP lens module 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module) 3.7mm, 4.6mm, 7mm fixed lens (5MP module) H.265, H.264, MJPEG codec, Multi streaming support Video analytics, WiseStream Ⅱ IP66, IK10, SD / SDHC / SDXC memory 4 slots Lens modules are required, not included with the camera

12 MP image sensor, 3008 x 3008 resolution output, 30fps Fisheye lens 1.08mm (187°X187°) Original fisheye view, onboard dewarding to Single panorama, Double panorama, Quad view Lens rotation & analog video output for easy installation and adjustment Triple Codec: H.265, H.264 and MJPEG multiple streaming WiseStream II compression technology WDR 120dB Defocus, Tampering, motion detection Heatmap, people counting business intelligence SD card slot IP42 rated, PoE powered White camera body
