Hanwha Vision IP Surveillance

 Max. 4M resolution 2.8 ~ 12mm (4.3x) motorised varifocal lens Max. 20fps@4M resolutions, Max. 30fps@2M resolutions H.265, H.264, MJPEG codec supported, Multiple streaming Day & Night (ICR), WDR (120dB) Motion detection, Tampering, Defocus detection micro SD (128GB) memory slot, PoE / 12V DC IR viewable length 30m, IP66, IK10

2MP resolution Maximum 120 fps (H.265/H.264) Day & Night (ICR), extremeWDR (150dB) WiseNRⅡ (Based on AI engine), WiseStreamⅢ (Based on AI engine) Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion) Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear

360° Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate) 360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle) AI based loitering detection and line crossing detection AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ AI based smart zoom and advanced hand over PTRZ remote adjustment Expansion of alarm/audio features Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2) Reinforced durability (IP66, IK10, NEMA4X)

Hanwha Techwin  SND-7082F SSDR is to enhance color reproduction and resolution and reduce signal noise. Additional functions include: face detection - prioritizing faces in an image, audio detection - alerting the system to events beyond the camera’s field of view, ROI (Region of Interest) - spotlighting the critical areas in the camera's field of view, and True Day/Night for superior images in the dark.

2 Megapixel (1920 x 1080) resolution H.265, H.264, MJPEG codec support, Multiple streaming Max. 60fps@2MP (H.265 / H.264) extremeWDR (120dB), Defog, DIS, WiseStreamII Tampering, Loitering, Directional detection, Fog detection Audio detection, Heatmap, Sound classification Queue management, Face detection, People counting Motion detection, Handover

2 Megapixel (1920 x 1080) resolution 2.8mm fixed lens H.265, H.264, MJPEG codec support, Multiple streaming 60fps@2MP (H.265 / H.264) WDR (120dB) Tampering, Loitering, Directional detection, Fog detection, Audio detection,Digital auto tracking, Heatmap, People counting, Queue  management, Face detection Motion detection,Handover Built-in Analytics Micro SD / SDHC / SDXC memory slot (Maximum 256GB) Hallway View, WiseStream II support LDC, PoE / 12V DC, Bi-directional audio support

5 Megapixel (2592 x 1944) resolution 3.2~10mm (3.1x) motorised varifocal lens 0.15Lux (Colour), 0Lux (B/W, IR LED on) 30fps@5MP (H.265/H.264) H.265, H.264, MJPEG codec support, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line detection Micro SD / SDHC / SDXC (128GB) memory slot, PoE IR viewable length 30m IP66, IK10 rated Hallway view, WiseStream II support Analogue video out & simple focus for easy installation LDC support (Lens Distortion Correction)

4 Megapixel resolution 3mm lens w/ 98.3° HFoV Up to 30fps (H.265/H.264) H.265/H.264, MJPEG codec support, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering Micro SD/SDHC/SDXC memory slot PoE Hallway View (90-/270-), WiseStream II, LDC support IR viewable length 20m IP66, IK10

4MP resolution, Up to 30fps (H.265/H.264) Colour : 0.13Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On) 3mm lens w/ 98.3° HFoV IR viewable length: 20m Day & Night (ICR), WDR (120dB) H.265, H.264, MJPEG, Multiple streaming supported Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering Hallway view (90/270), LDC support, WiseStream II Micro SD/SDHC/SDXC memory slot (Max. 128GB) PoE IP66

SCD-2010/2030 mini dome cameras have been designed to generate outstanding images in various installation environments.

2 megapixel (1920 x 1080) resolution 4.75 ~ 261.4mm (Optical 55x) lens Day & Night (ICR), WDR (120dB) DIS with built-in gyro sensor Maximum IR viewable length: 500m (1,640ft) H.265, H.264, MJPEG codec support Multiple streaming, WiseStream II support Intelligent Video / Audio Analytics, Defog (Optical) microSD / SDHC / SDXC memory 2 slots (Up to 512 GB) IP66, IK10 HPoE / 24V AC Power Input, HPoE injector included

2 Megapixel (1920 x 1080) resolution 3.2~10mm (3.1x) motorised varifocal lens 0.095Lux (Colour), 0Lux (B/W, IR LED on) 30fps@2MP (H.265/H.264) H.265, H.264, MJPEG codec support, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line detection Micro SD / SDHC / SDXC (128GB) memory slot, PoE, 12 V DC IR viewable length 30m IP66, IK10 rated Hallway view, WiseStream II support Analogue video out & simple focus for easy installation LDC support (Lens Distortion Correction)

Samsung Techwin America continues to expand its WiseNetIII range of high-performance imaging solutions with the SNV-6013 Vandal-Resistant Network Micro-Dome 2 megapixel camera. The SNV-6013 features Samsung’s most advanced imaging technology to deliver 1080p high-definition images at 60fps, even in challenging lighting conditions. The SNV-6013 employs Samsung Super Dynamic Range (SSDR) to produce a wide dynamic range of 120dB, and 50dB signal to noise ratio with Samsung Digital Noise Reduction (SSNRIII). The new camera provides high-quality images in as little as 0.3 lux (F2, 50IRE, color) illumination. Additional features include intelligent video analytics, including tampering, virtual line, enter/exit, appear/disappear and face detection, which can trigger an alarm event (FTP file upload, e-mail notification, etc.) The SNV-6013 supports H.264 (up to 60fps full HD) and MJPEG (up to 30fps) formats and is equipped with a Micro SDX/SDH/SDXC for local recording and storage, ensuring reliable capture of video in the event of a network disruption. It also features video quality adjustment, bitrate control technology, up to 10 streaming profiles, and privacy masking. The SNV-6013 comes with a standard lens with 103.1° horizontal viewing angle, or an optional wide angle lens version with 165° horizontal viewing angle.

The 20° tilt on this aluminium mounting solution is designed to maximise effective field of view with wall-mounted fisheye or dome cameras Material: Aluminium Dimensions : Ø160.0 x 57.6mm (6.30" x 2.27") Weight : 325g (0.72 lb) Colour : White Supported products : XNF-9010RV/RVM IP cameras, and XND-9082RV, XND-8082RV, XND-6081RV/6081REV, XND-8081RV/8081REV, PND-A9081RV IP dome cameras

2 Megapixel (1920 x 1080) resolution Built-in 2.8mm fixed lens 0.1Lux (Colour), 0Lux (B/W, IR LED on) 30fps@2MP (H.265/H.264) H.265, H.264, MJPEG codec supported, Multiple streaming Day & Night (ICR), WDR (120dB) Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line detection Micro SD / SDHC / SDXC (128GB) memory slot, PoE / 12V DC IR viewable length 20m Hallway view, WiseStream II support Analogue video out for easy installation LDC support (Lens Distortion Correction) Built-in microphone

WiseNet III 2MP Full HD network camera range The eight camera models incorporate Samsung’s new WiseNetIII DSP chipset, which has been developed by the company as a result of a market research programme carried out by its worldwide product management team. This identified what users and installers felt were the key ‘must haves’ in order for high definition IP network cameras to automatically become the preferred choice when a new video surveillance system was being specified, or an existing system was being upgraded. The extremely impressive set of features incorporated in to the WiseNet III range include: All of the models can capture high quality images when the lighting level is as low as 0.01 lux. An ultra fast frame rate of 60fps at 1080p which results in latency free clear images. This can be particularly beneficial in a scene with moving subjects by ensuring thatimage edges are kept sharp and clear. Enhanced Wide Dynamic Range which when working with performance greater than 100dB,can accurately produce images in scenes that simultaneously contain very bright and very dark areas. Correct colour is maintained by adopting Regional Adaptive Tone Mapping. Motion blur is reduced by using Samsung’s Motion Artefact Reduction technology. P-iris technology which optimises lens iris control to provide improved depth of field and sharpness. Defogfeature which can be used to help improve the clarity of images captured in poor weather conditions such as rain, snow or fog. Digital Image Stabilization (DIS), previously only seen in analogue chipsets, negates the effects of a camera shaking due to high winds or building vibration. Simple Focus feature which automatically focuses the camera and is built into most of the models. We are certain this will impress installers in terms of the potential to reduce installation and maintenance time, as all that is needed is one simple push of a button on the back of the camera to achieve optical focus. Multi-crop feature enables users to also highlight and crop up to nine areas of interest in order for the camera to only send the images within that area at a preferred resolution and frame rate. Further bandwidth and recording space savings can also be achieved with the help of the third generation of Samsung’s highly acclaimed Super Noise Reduction (SSNR) technology, which eliminates image noise in low light conditions. There is also the option of using Intelligent Video Analytics (IVA) to detect activity by various means, such as face detection, tripwire and enter/exit direction, object appear/disappear and ‘tampering’. Alternatively, the motion detection technology built into the WiseNetIIIDSP chipset can greatly reduce the false alarm rate by learning what is the normal motion of the scene and ignoring, for example, the fluttering leaves on trees. Users can also take advantage of audio detection technology which can further help reduce false alarms by being set up to only react to abnormal sounds.  As is the case with all Samsung professional security products, the cameras in the WiseNetIII range are supplied with full support services from Samsung Techwin Europe Ltd, including free system design, free technical support and a full three-year warranty.

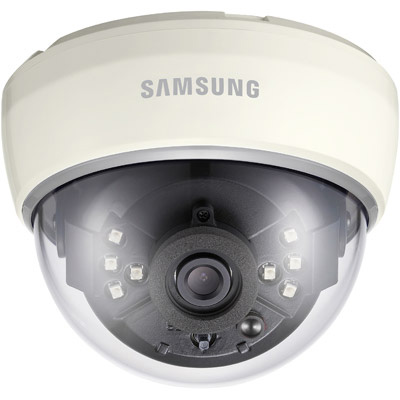

The SCD-2022R/2042R are discreet general purpose analog fixed dome cameras suitable for a wide range of applications. It incorporates the 6 the generation Winner engine from Hanwha Techwin that features premium level resolution at 700TV lines in sharp mode and other core functionalities such as SSNRIII, day & night (ICR), and defog.

Hanwha Techwin SCB-1001 is a 1/3 inch colour / monochrome IP camera with 650 TVL high resolutio. The box camera has super dynamic range, digital noise reduction, privacy masking and coaxial control.

The 20° tilt on this polycarbonite mounting solution is designed to maximise effective field of view with wall mounted fisheye cameras Material : PC Can be used with QNF-8010, QNF-9010 IP cameras Dimensions : Ø99x48.15mm (Φ3.9x1.9") Weight : 100g (0.22 Ib) Colour : White RAL 9003

Hanwha Techwin SBP-160WMW1 is a wall mount for IP dome cameras.

New Wisenet Multi-sensor Cameras Hanwha Techwin has expanded its Wisenet multi-sensor camera line with Wisenet PNM-7000VD (2-head).  It combines powerful performance at an affordable price. For maximum adaptability, configurable fixed-focus lens/CMOS sensor modules are available in multiple fields of view which can be easily installed onsite. A 2MP lens module is available for the PNM-7000VD, which enables installers to precisely customise the resolution and lens combination for a perfect fit to any environment. The camera brings a new level of quality and value to the multi-directional camera market with high frame-rates, true WDR (Wide Dynamic Range) and a powerful suite of analytics built in. Utilising a single IP address requires only one VMS license, further reducing the cost to install, service and support. The PNM-7000VD camera is a perfect solution for hospitals, schools and retail and allows for individual on-screen displays and a full suite of video analytics including loitering, directional detection, fog detection, tampering, motion detection, object appearing/disappearing and objects entering or exiting an area. Hallway view aspect ratios are also supported for monitoring of vertical shaped areas.
