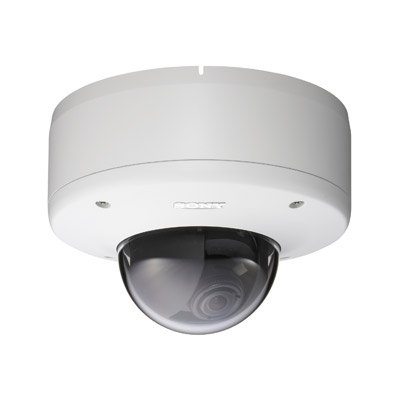

Sony SSC-CD79P - the ultimate analogue mini-dome

Product Profile

Sony SSC-CD79P is a vandal-resistant mini-dome camera designed for either indoor or outdoor use.  The camera incorporates DynaView technology, which dramatically improves the cameras dynamic range by 128 times when compared to conventional cameras.  This results in clear image reproduction, even in extreme high-contrast environments.

  • Wide Dynamic Range with DynaView technology
  • Powerful 3.6x zoom, vari-focal lens
  • Ruggedised design
  • Day/night function
  • Flexible power operation


- Wall or ceiling-mountable/easy viewing-angle adjustment
-Ball-joint lens mount technology
- Automatic Gain Control (AGC)
- Auto Tracing White Balance (ATW)/ATW Pro
- AC Line Lock/Internal Line Lock




Read more

Technical Specification

Make Sony
Manufacturer Sony Professional Solutions Europe
Model code SSC-CD79P
Chip Inch Size 1/3
Colour Type Colour / Monochrome
Resolution TVL 540
Sensitivity lux 0.03
Dome Type Variable focus
Digital (DSP) Yes
Indoor/Outdoor Indoor/Outdoor
Mount Type Ceiling, Wall
Electrical Specifications Voltage: 24 VAC / 12VDC
Power Consumption: <4 W
Focal length 2.8 ~ 10
Rotation Angleso 100.8 ~ 27.7 (pan)
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
S/ N (Signal/ Noise) Ratio dB >50
Synchronisation Internal / AC line clock
Video Output 1Vp-p
Zoom Ratio x3.6
Physical Specifications Dimensions mm: 50C 177.5 x 141.5
Weight g: 1,750
Environmental Specifications Operating Temp oC: -40 ~ 60
Operating Humidity %: 20 ~ 80
Additional info Iris: auto.  F number : F1. (wide end), F3.0 (Tele end).
