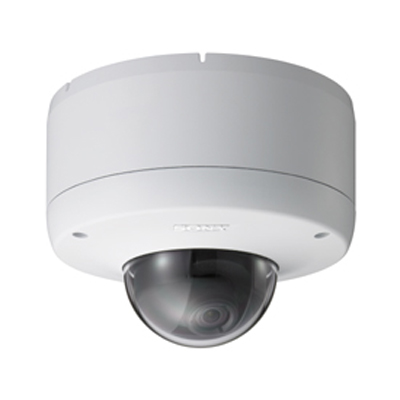

Sony SSC-CD49P Dome camera
Technical Specification
Features:
- Make: Sony
- Model code: SSC-CD49P
- Series: SSC-CD Series
- Chip Inch Size: 1/3 inch
- Colour Type: Colour
Make | Sony |
---|---|
Manufacturer | Sony Professional Solutions Europe |
Category | CCTV>Dome cameras |
Model code | SSC-CD49P |
Chip Inch Size | 1/3 inch |
Colour Type | Colour |
Resolution TVL | 480 |
Sensitivity lux | 0.7 lux |
Dome Type | Variable Focus |
Indoor/Outdoor | Indoor |
Mount Type | Ceiling, Wall mount |
Electrical Specifications |
Voltage: 12 V DC / 24 V AC Power Consumption: 4.2 W |
Focal length | 2.8 ~ 10.0 |
Auto Gain Control | Yes |
White Balance | Yes |
S/ N (Signal/ Noise) Ratio dB | > 50 |
Synchronisation | Internal, Line-lock |
Signal Mode | PAL |
Video Output | 1 Vp-p, 75 Ohms |
Physical Specifications |
Dimensions mm: 126 (Dia) x 97 Weight g: 440 |
Environmental Specifications | Operating Temp oC: -20 ~ +50 |
Download PDF version Download PDF version |
