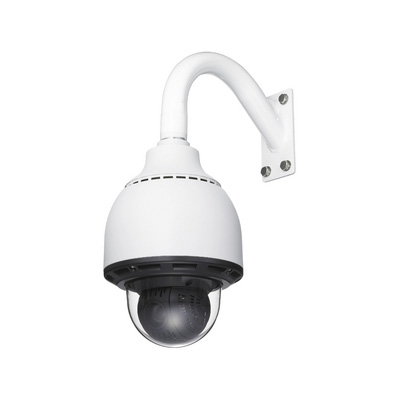

Sony SNC-RS84P outdoor PTZ dome camera with 530 TVL

Technical Specification

Features:
  • Make: Sony
  • Model code: SNC-RS84P
  • Colour Type: Colour / Monochrome
  • Resolution TVL: 530
  • Sensitivity lux: 0.09
Read more
Additional info:

*DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2).

Read more
Make Sony
Manufacturer Sony Professional Solutions Europe
Model code SNC-RS84P
Colour Type Colour / Monochrome
Resolution TVL 530
Sensitivity lux 0.09
Dome Type Continuous Rotation
Pan Speed o/ sec 400
Indoor/Outdoor Outdoor
Tilt Speed o/ sec 400
Mount Type Ceiling
Electrical Specifications Voltage: 24 V AC
Power Consumption: 78 W
Focal length 4.1 ~ 73.8
Rotation Angleso 360 pan, 210 tilt
Compression H.264, MPEG-4, JPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB 50
Signal Mode PAL
Zoom Ratio x18
Network Properties Interface: 10Base-T/100Base-TX (RJ-45), RS232
Network Protocols: TCP/IP, HTTP, ARP, ICMP, FTP, SMTP, DHCP, SNMP*
Control: PTZ
Image Frame Rate: 25 fps
Physical Specifications Dimensions mm: 238 x 344
Weight g: 4,300
Environmental Specifications Operating Temp oC: 40 ~ 50
Protection: IP66
System Requirments Operating System: Windows XP, Windows Vista
Web Browser: Microsoft Internet Explorer Ver 6.0 or, Ver 7.0
Hardware and System related properties: Pentium IV 3 GHz, Intel Core 2 Duo 2 GHz or higher
Additional info

*DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2).
