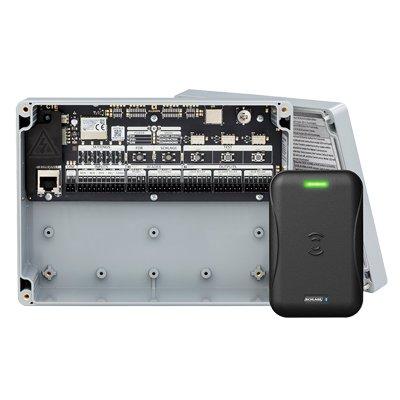

Schlage (Allegion) CTE Single Door Controller with Multi-Technology Reader

Technical Specification

Features:

Make: Schlage (Allegion)
Model code: CTE
Max No. of Doors per Controller: 1
No of Cardholders: Up to 5,000
Voltage: 12 ~ 24 V DC

Additional info:

The CTE is an ENGAGE™ enabled single opening controller that allows perimeter and common area openings to be managed in a single system along with Schlage Control® smart deadbolts, NDE cylindrical and LE mortise wireless locks. It is ideal for multifamily, commercial mixed use, narrow stile and retail store front applications.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Schlage (Allegion)
Manufacturer	Allegion plc
Category	Access Control>Access control controllers
Model code	CTE
Max No. of Doors per Controller	1
No of Cardholders	Up to 5,000
Electrical Specifications	Voltage: 12 ~ 24 V DC
Environmental Specifications	Operating Temp ^oC: -35 ~ +66 C (-31 ~ +151 F) Operating Humidity %: 0 - 100% Non-condensing
Additional info	The CTE is an ENGAGE™ enabled single opening controller that allows perimeter and common area openings to be managed in a single system along with Schlage Control® smart deadbolts, NDE cylindrical and LE mortise wireless locks. It is ideal for multifamily, commercial mixed use, narrow stile and retail store front applications.
Download PDF version Download PDF version
