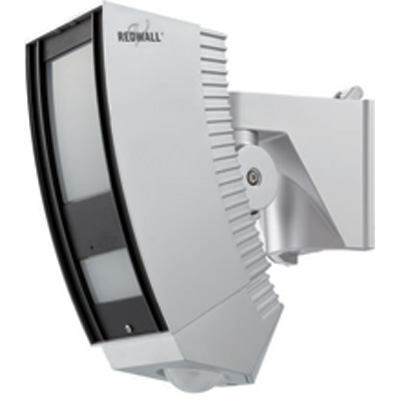

REDWALL SIP-100-IP passive infrared detector for CCTV applications

Technical Specification

Features:

Make: REDWALL
Model code: SIP-100-IP
Motion detector type: Passive Infrared detector
Detector Range m: 100 x 3 m detector range
Indoor/Outdoor: Outdoor

Additional info:

REDWALL SIP-100-IP is a passive infrared detector for CCTV applications. This PIR detector features automatic sensitivity management to ambient temperature and light, advanced detection algorithm, anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer and independant sensitivity for creep/ near and far detection zones.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	REDWALL
Manufacturer	OPTEX
Category	CCTV>Video motion detectors
Model code	SIP-100-IP
Motion detector type	Passive Infrared detector
Detector Range m	100 x 3 m detector range
Indoor/Outdoor	Outdoor
Electrical Specifications	Voltage: PoE Power Consumption: 45 mA
Physical Specifications	Dimensions mm: 331 x 102 x 290 Weight g: 2,100
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP65, IP55
Additional info	REDWALL SIP-100-IP is a passive infrared detector for CCTV applications. This PIR detector features automatic sensitivity management to ambient temperature and light, advanced detection algorithm, anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer and independant sensitivity for creep/ near and far detection zones.
