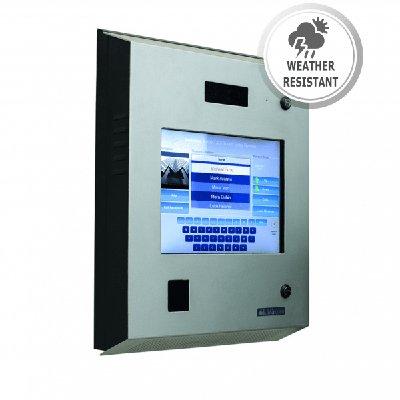

Mircom TX3-TOUCH-S15S-WR-A Surface Outdoor Video Intercom System

Technical Specification

Features:
  • Make: Mircom
  • Model code: TX3-TOUCH-S15S-WR-A
  • Type of Kit/ System: Video & Audio
  • Vandal Resistant: Yes
  • Mount Type: Surface Mount
Read more
Additional info:

Vandal resistant enclosure to endure high external impact  1600 nits high brightness display   15” color anti-glare, industrial grade, 6.4mm thick glass touch screen display   Touch screen works under any weather condition – rain, snow and even when the user is wearing gloves   Two locks for added security  Bottom firing speaker is perfect for outdoor application  Built-in TCP/IP capability for remote programming   Built-in HD camera, and built-in proximity card reader for easy integration to access control panels   Provision to add optional HD IP camera and postal lock (using external housing)   Native integration with Access Control and Elevator Restriction units   Multiple panels (unlimited using TCP/IP or up to 63 using RS-485) can be connected to a shared database   Four fully configurable themes (color & font), 4 pre-set themes, and 4 screen layout templates   Includes four built-in keyboard layouts (Full QWERTY, Full QWERTY + Num pad, Simple, or Accessible)   Provision for a single door controller module for access control integration   Intuitive interface with the option to add up to 7 categories for the resident database   Voice or video-based help menu for ease of use   Built-in e-mail resident feature   Supports Auto Dialer (PSTN), No Phone Bill (NSL), and Voice over IP (SIP)   Recurring revenue opportunities using the optional advertising module   Easily load media content via built-in USB or TCP/IP interface. Supports JPG, GIF, SWF, WMV and MPEG file formats   Industry Canada approved

Read more
Make Mircom
Manufacturer Mircom Technologies, Ltd.
Category Access Control>Audio, video or keypad entry
Model code TX3-TOUCH-S15S-WR-A
Type of Kit/ System Video & Audio
Vandal Resistant Yes
Mount Type Surface Mount
Panel Colour Silver
Environmental Specifications Operating Temperature oC: -20 ~ +50 C (-4 ~ +122 F)
Electrical Specifications Voltage: 24 V DC
Power Consumption: 156 W
Physical Specifications Dimensions mm: 604 x 445 x 103

Product description

Introducing the Mircom TX3-TOUCH-S15S-WR-A, a robust 15-inch touch entry panel designed for seamless access control in challenging environments. This sophisticated system combines weather-resistant durability with cutting-edge technology, making it ideal for both indoor and outdoor applications.

Key Features

  • Vandal Resistant Design: The enclosure is designed to withstand significant external impacts, ensuring long-term reliable operation.
  • High Brightness Display: A 1600 nits display ensures visibility in various lighting conditions.
  • Durable Touch Screen: The panel features a 6.4mm thick industrial-grade anti-glare glass, functional even in adverse weather or when wearing gloves.
  • Comprehensive Connectivity: Built-in TCP/IP, HD camera, and proximity card reader allow for easy integration with existing access control systems.
  • Customisable Interface: Four configurable themes and multiple layout templates provide flexibility for diverse user needs.
  • Advanced Communication: Supports PSTN, NSL, and VoIP for efficient and versatile communication with residents.

Ideal Use Cases

The TX3-TOUCH-S15S-WR-A is perfect for secure access control in residential and commercial buildings, such as apartments, condominiums, office complexes, and industrial sites. It boasts a sophisticated Windows-based interface and can handle a large resident database, making it ideal for high-demand environments.

Equip your facility with the Mircom TX3 weather-resistant touch panel and experience enhanced security and communication capabilities to protect and control access effectively.
